WG1623X

by Broadband-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Broadband Isolator for global customers. WG1623X is a Broadband Isolator in Frequency Range of 3.8~8.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.70~0.90 dB and Isolation Min is 14.0~16.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100 W.

Product Specifications

Product Details

  • Part Number
    WG1623X
  • Description
    3.8 to 8.0 GHz Broadband Isolator

General Parameters

  • Frequency Range
    3.8~8.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.70~0.90 dB
  • Isolation Min
    14.0~16.0 dB
  • Forward Power
    100 W
  • Reverse Power
    100 W
  • VSWR Max
    1.50~0.70
  • Impedance
    50 Ω
  • Connector Type
    SMA-K/Microstrip line

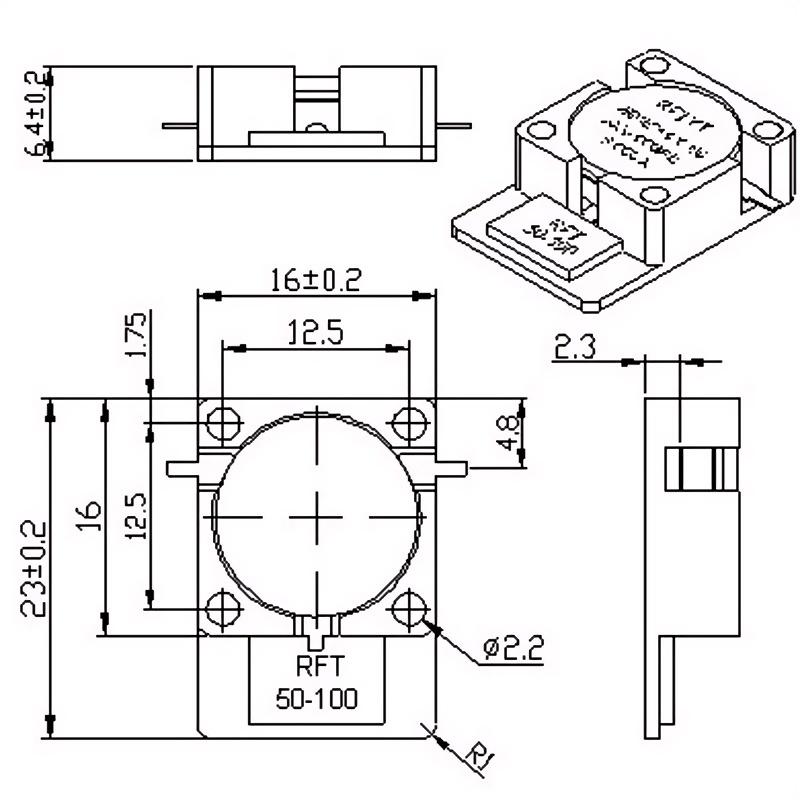

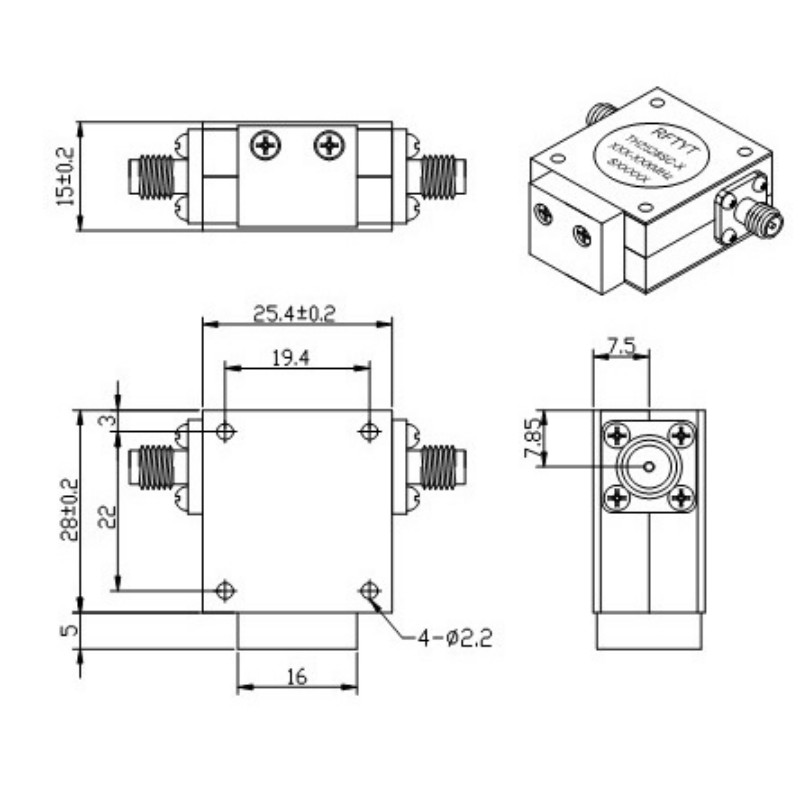

  • Size
    16.0*23.0*6.4 mm
  • Weight
    55 g
  • Operating Temperature
    -40~+80 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Forward Power (W) Reverse Power (W) Choose
WG1623X-X-100/3800-8000MHz 3800-8000 0.9@3.8-4.0/0.7@4.0-8.0 14@3.8-4.0/16@4.0-8.0 1.7@3.8-4.0/1.5@4.0-8.0 100 100
