CT-01W-RA0814-1.0K-110G

by Coaxial-Fixed-Termination-(Dummy-Load)
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Fixed Termination (Dummy Load) for global customers. CT-01W-RA0814-1.0K-110G is a Coaxial Fixed Termination (Dummy Load) in Frequency Range of DC~110.0 GHz. It is made of high quality materials under a high standard, the Connector Type of this product is 1.0-F (K), VSWR Max is 1.50 and Impedance is 50 Ω. The component has a good working performance and stability, it is ideal for handling a Power of 1 W.

Product Specifications

Product Details

  • Part Number
    CT-01W-RA0814-1.0K-110G
  • Description
    DC~110.0 GHz Coaxial Fixed Termination(Dummy Load)

General Parameters

  • Frequency Range
    DC~110.0 GHz
  • Connector Type
    1.0-F (K)
  • VSWR Max
    1.50
  • Impedance
    50 Ω
  • Power
    1 W

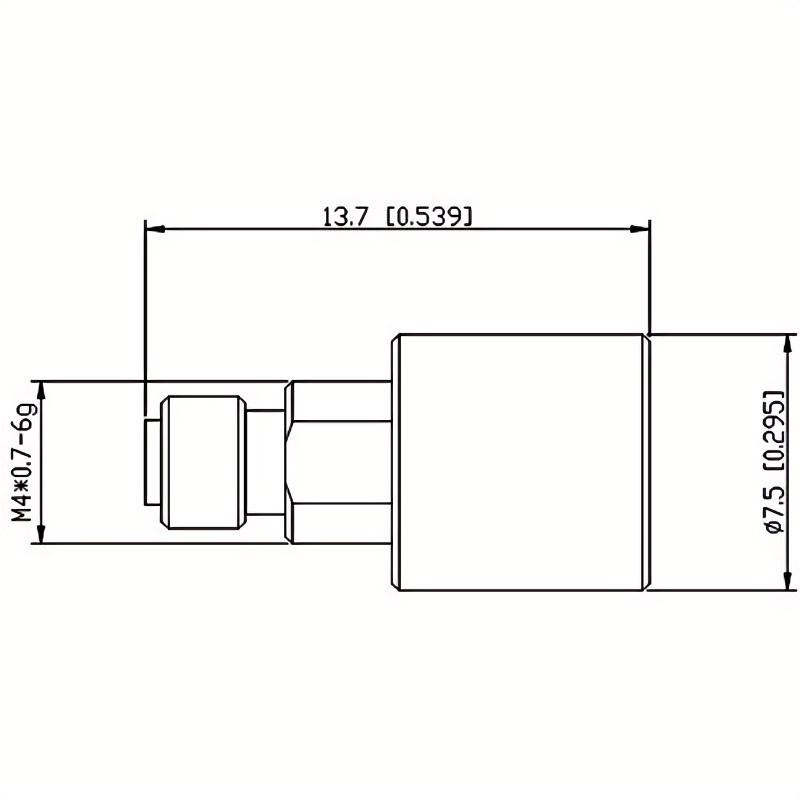

  • Size
    Φ7.5*13.7 mm
  • Weight
    3 g
  • Operating Temperature
    -55~+125 °C
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
