RF Drop-in Isolator Technology Analysis: Design, Principle and Application

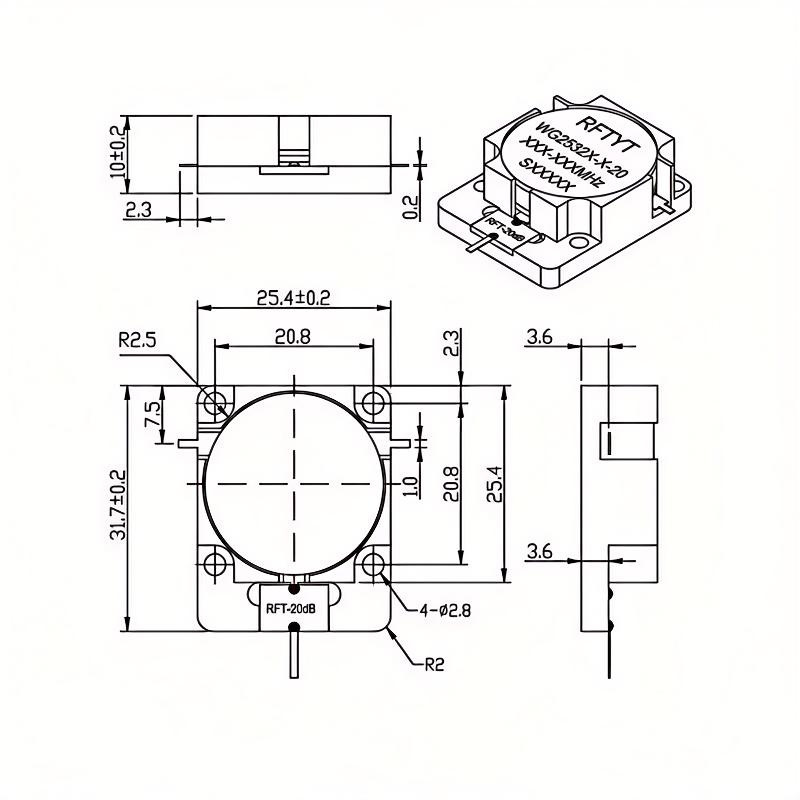

Drop-in Isolator (plug-in isolator) is a highly integrated RF non-reciprocal device designed for rapid deployment and high-density systems. It is widely used in 5G base stations, satellite communications, radars and IoT devices. Its core features are plug-and-play packaging, compact size and excellent high-frequency performance, making it an ideal choice for modular design of modern RF front-ends. This article will conduct an in-depth analysis of technical principles, structural design, key parameters, typical applications and future trends.

1. Technical Principles and Core Advantages

Non-reciprocity and Energy Management

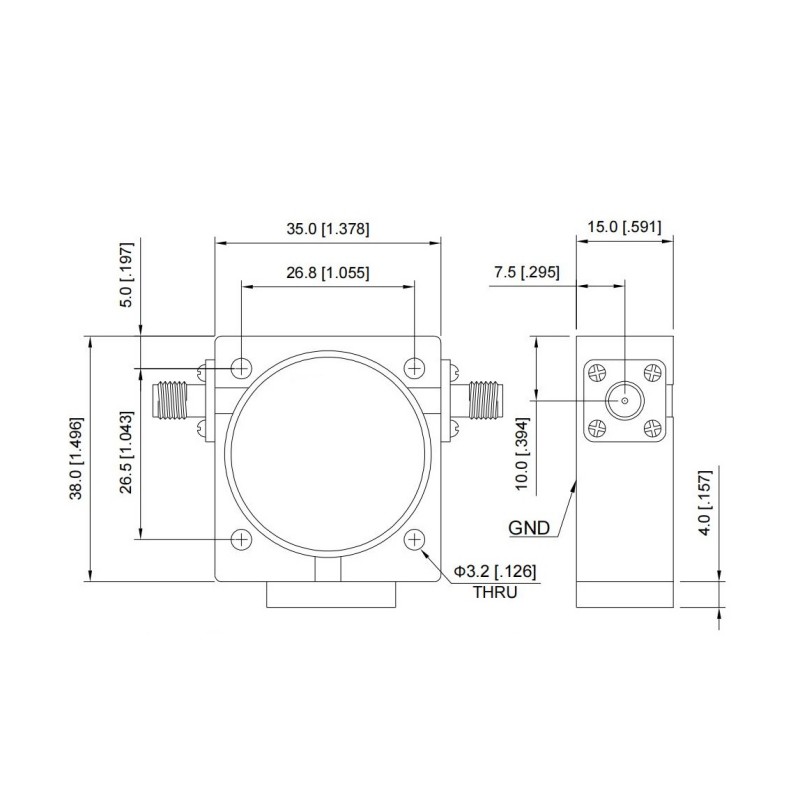

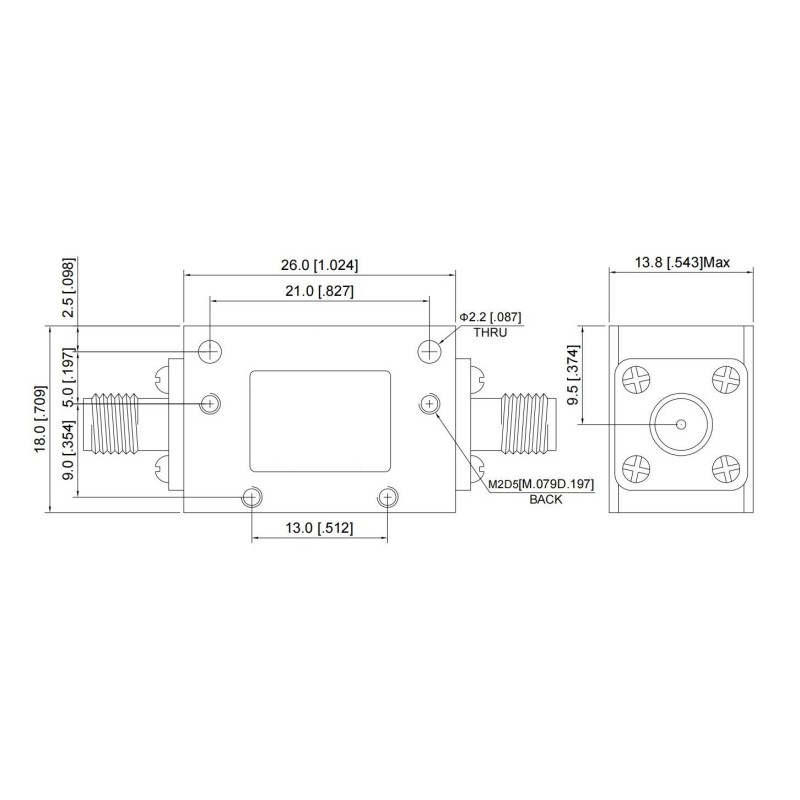

Drop-in Isolator is based on the Faraday rotation effect of ferrite materials. It controls the propagation direction of electromagnetic waves through a bias magnetic field to achieve low-loss transmission in the forward direction (insertion loss <0.4dB) and high isolation in the reverse direction (isolation >25dB). Compared with traditional coaxial isolators, it adopts a planar magnetic circuit design to directly integrate ferrite sheets into microstrip or stripline structures, significantly reducing the volume (typical dimensions can be as small as 5mm×5mm×2mm).

Structural innovation

Embedded packaging: Surface mount (SMT) or cavity embedded design, no complex welding required, supports rapid assembly of automated production lines.

Integrated heat dissipation: Metallized through holes (Via) combined with thermal conductive adhesive directly conduct heat to the PCB ground layer, with a power capacity of 10W@6GHz.

Broadband matching network: Integrated matching circuit (such as LC filter), supports DC~40GHz broadband operation, VSWR<1.25.

2. Core design elements

Material selection

Low-loss ferrite: yttrium iron garnet (YIG) or nickel zinc ferrite (Ni-Zn), hysteresis loss <0.1dB/GHz.

High-frequency substrate: ROGERS 4003C or aluminum nitride (AlN) ceramic, with stable dielectric constant (±0.05), suitable for millimeter wave frequency band.

Magnetic field optimization

Micro permanent magnet array: Multi-pole layout ensures uniform magnetization of ferrite and reduces edge field interference.

Dynamic tuning capability: Optional electromagnetic coil version, isolated frequency point can be adjusted by external current (adjustment range ±10%).

Interface compatibility

Standardized pins: Support JEDEC standard packages (such as QFN, BGA), compatible with mainstream RF PCB layout.

Multi-band adaptation: By replacing the matching circuit, the same package can cover Sub-6GHz (n77/n79) and millimeter wave (n258/n260) bands.

III. Production process and testing

Key manufacturing process

Thin film deposition and lithography: Sputtering ferrite film on ceramic substrate with an accuracy of ±1μm to achieve high-frequency response consistency.

Laser micro welding: Pulsed laser welding of magnets and cavities to ensure airtightness (leakage rate <1×10⁻⁸ Pa·m³/s).

3D printed magnetic circuit: Metal additive manufacturing technology customizes complex magnetic pole shapes and reduces assembly tolerances.

Test process

Automated RF test: Use probe station and vector network analyzer (VNA) to batch test S parameters, and the efficiency is improved by 300%.

Highly accelerated life test (HALT): Verify 10,000 hours of reliability under -55℃~+125℃ temperature cycle.

IV. Typical application scenarios

5G Massive MIMO AAU

Antenna port isolation: In the 64T64R array, Drop-in Isolator protects PA from antenna mismatch reflection, reducing the failure rate by 70%.

Millimeter wave front-end module: Integrated in AiP (Antenna in Package), supports 28GHz frequency band, and the size is only 1/3 of the traditional solution.

Satellite communication terminal

Low profile design: Replace waveguide isolator in phased array satellite terminal, thickness <3mm, suitable for vehicle/aircraft platform.

Enhanced anti-interference: Suppress multipath reflection and improve LEO satellite uplink signal-to-noise ratio (SNR+3dB).

Autonomous driving radar

77GHz vehicle radar: The isolator is integrated around the MMIC chip to prevent TX-RX crosstalk and improve the angular resolution by 15%.

Fast maintenance: The modular design supports plug-and-play replacement of faulty units, reducing the maintenance cost of vehicle manufacturers.

Consumer electronics and the Internet of Things

WiFi 6E router: Isolate adjacent channel interference at a bandwidth of 160MHz, and increase throughput by 20%.

Drone image transmission system: Suppress the interference of motor noise on the RF link and extend the transmission distance to 10km.

V. Technical challenges and future trends

Current technical bottlenecks

High-frequency loss and heat dissipation: The eddy current loss of ferrites in the frequency band above 60GHz increases dramatically, and low-dimensional magnetic materials (such as two-dimensional ferromagnets) need to be developed.

Cost and yield: The yield of millimeter wave process is only 65%, and breakthroughs in wafer-level packaging (WLP) technology are needed.

Innovation direction

Intelligent reconfigurable isolator: Adaptive switching of frequency bands is achieved based on MEMS or liquid crystal materials, supporting software-defined radio (SDR).

Photonic integrated isolation: heterogeneous integration of silicon photonic chips and ferrites to achieve optical-RF hybrid isolation (isolation > 40dB).

Self-powered design: The energy harvesting circuit draws power from the ambient electromagnetic field to achieve passive bias magnetic field generation.

VI. Summary

Drop-in Isolator is reshaping the RF front-end architecture with high integration, low profile and excellent high-frequency performance. From the dense antenna array of 5G base stations to the millimeter-wave chip of autonomous driving radar, its "plug and play" feature greatly reduces system complexity and deployment costs. In the future, with breakthroughs in new materials (such as topological insulators) and heterogeneous integration technologies, Drop-in Isolator will further evolve towards THz frequency bands, zero-power self-biasing and multi-functional integration, becoming a core enabling device for 6G integrated networks and full coverage of air, land, and sea.
