RF RF isolator technology analysis: principles, processes and core features

RF isolators are key passive components in RF systems and are widely used in communications, radar, satellite systems and other fields. Their main function is to achieve efficient signal transmission and interference isolation. This article will conduct an in-depth analysis of RF isolators from three aspects: technical principles, production processes and main features.

1. Technical principles

The working principle of RF isolators is mainly based on electromagnetic field regulation and energy conversion mechanisms, which can be divided into the following core parts:

Magnetic field irreversibility and energy dissipation

RF isolators absorb the magnetic field energy of reflected signals through internal magnetic materials (such as ferrites) and convert them into heat energy, thereby preventing reflected signals from returning to the signal source and protecting transmitters and receivers from interference. This design is particularly suitable for high-frequency scenarios, such as the efficient isolation of coaxial isolators in the 300-4000MHz frequency band.

Separation of DC and RF signals

In RF isolators, a resonant circuit is formed by the combination of inductance (L) and capacitance (C), allowing RF signals to pass through while blocking DC components. For example, LC circuits or microwave transmission line designs are used to achieve impedance matching to isolate low-frequency signals.

Structural design and signal path optimization

Typical isolators include input, output, coupling and isolation ports, and electromagnetic coupling is achieved through microstrip lines or coaxial structures. For example, in the coaxial integrated design, the inner conductor is connected by a silver capacitor, and the outer ring capacitor group forms a high-frequency channel to ensure signal transmission efficiency.

2. Production process

The manufacturing of RF isolators needs to take into account both high-frequency performance and structural stability. The key processes include:

Material selection and structural design

Magnetic materials: Ferrites and other materials are used to absorb magnetic field energy and must have high magnetic permeability and low loss characteristics.

High-frequency materials: Ceramic or polytetrafluoroethylene substrates are commonly used in microwave bands to ensure low dielectric loss.

Precision processing technology

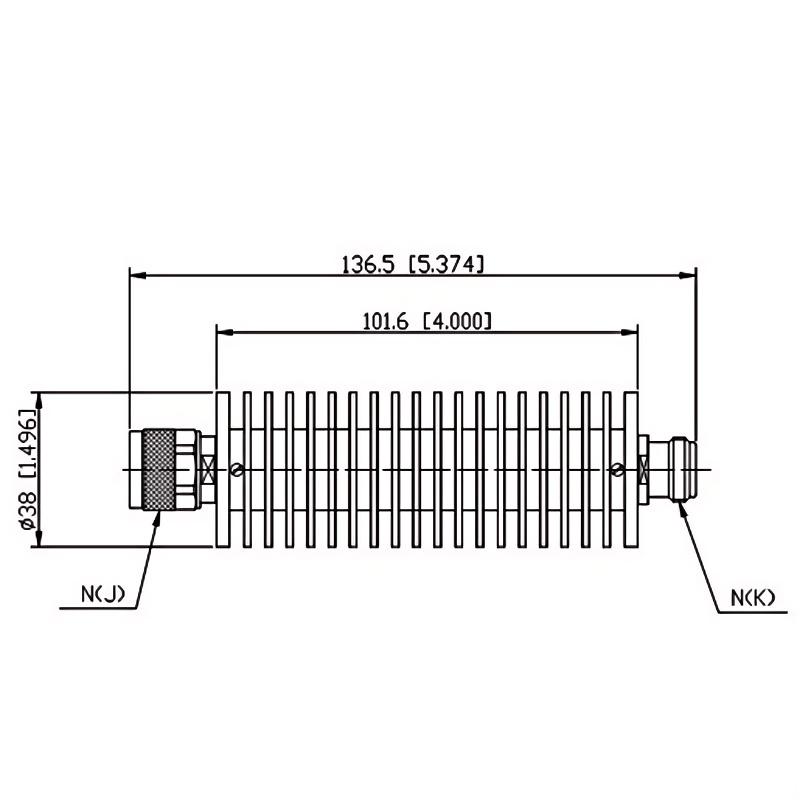

Coaxial structure assembly: For example, the precision assembly of N-type connectors, the inner conductor is fixed by an insulating shell to ensure impedance matching and signal integrity.

Surface mount technology (SMT): Integrated circuit technology is used in miniaturized design to improve integration and reliability.

Testing and calibration

Parameter verification: Key parameters such as isolation, insertion loss, and return loss need to be tested, and a vector network analyzer is usually used for frequency domain analysis.

Environmental adaptability test: Verify product stability under extreme temperature, humidity and other conditions, such as the high protection level required in tunnel communication systems.

3. Main features

The core advantages of RF isolators are reflected in performance parameters and application adaptability:

High performance parameters

High isolation: can reach more than 30dB, effectively suppressing signal reflection and crosstalk.

Low insertion loss: typical value is less than 0.5dB, reducing signal transmission attenuation.

Wideband support: covers MHz to GHz range, for example, coaxial isolators support 300-4000MHz.

Structural diversity and adaptability

LC circuit type: suitable for low-frequency scenarios, low cost and easy to design.

Microwave transmission line type: excellent performance in high-frequency band, commonly used in radar and satellite communications.

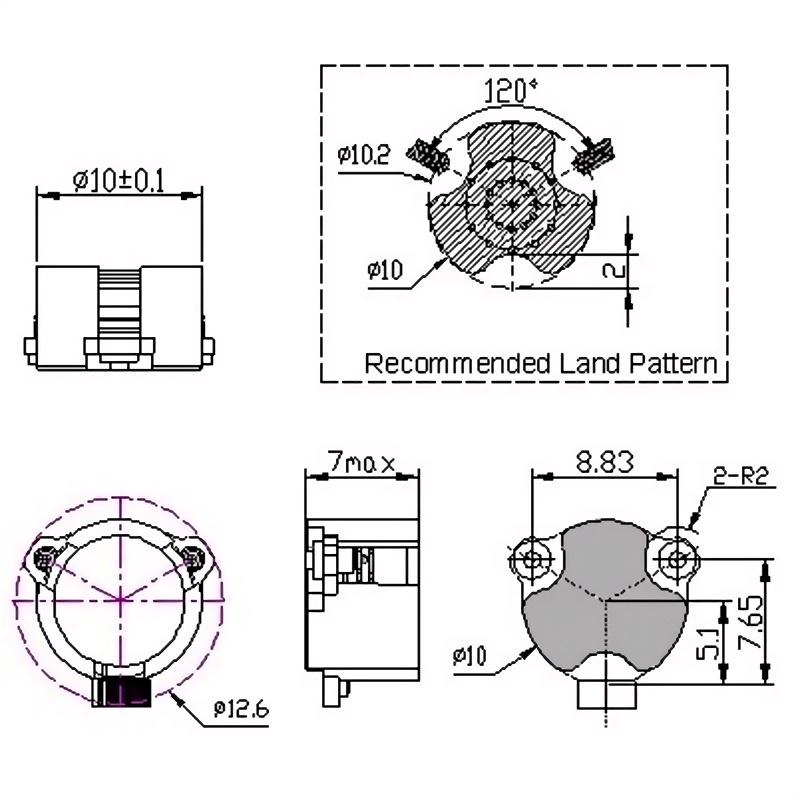

Surface mount type: small size, high integration, suitable for 5G and IoT devices.

Anti-interference and reliability

Through the four-terminal triple isolation design (input, output, power supply, ground), avoid common ground interference and improve the system's anti-electromagnetic interference ability.

It can still work stably in harsh environments (such as high temperature and high humidity), and is suitable for industrial control and military fields.

Wide range of application scenarios

Communication system: base station signal isolation, satellite link protection.

Medical and industrial equipment: prevent RF energy leakage from interfering with sensitive circuits.

IV. Future development trend

With the popularization of 5G, Internet of Things and millimeter wave technology, RF isolators are moving towards miniaturization, broadband and high power capacity. The application of new materials (such as gallium nitride) and new processes (such as 3D printing) will further optimize performance and promote its penetration in emerging fields such as autonomous driving and smart wearables.

From the above analysis, it can be seen that RF isolators have become an indispensable component in modern electronic systems with their unique technical principles and manufacturing processes, and will continue to play a core role in high-frequency communications and complex electromagnetic environments in the future.
