RFTXX-60AM0606-6

by Leaded-Attenuator
RFHB04G18GPI Image

RF Solution offer a wide selection of Leaded Attenuator for global customers. RFTXX-60AM0606-6 is a Leaded Attenuator in Frequency Range of DC~6.0 GHz. It is made of high quality materials under a high standard, the Attenuation Value of this product is ①01-10 dB②15,20 dB③25,30 dB, Attenuation Tolerance is ①±0.6 dB②±0.8 dB③±1.0dB and VSWR Max is 1.25. The component has a good working performance and stability, it is ideal for handling a Rated Power of 60 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-60AM0606-6
  • Description
    DC~6.0 GHz Leaded Attenuator

General Parameters

  • Frequency Range
    DC~6.0 GHz
  • Attenuation Value
    ①01-10 dB②15,20 dB③25,30 dB
  • Attenuation Tolerance
    ①±0.6 dB②±0.8 dB③±1.0dB
  • VSWR Max
    1.25
  • Rated Power
    60 W
  • Impedance
    50 Ω
  • Temperature Coefficient Max
    150 ppm/℃

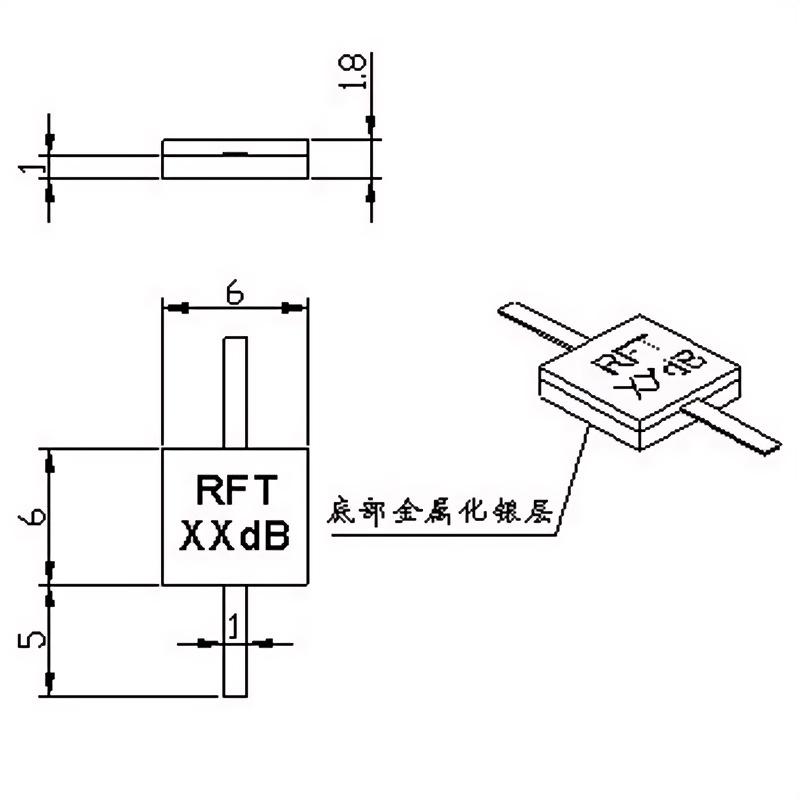

  • Size
    Refer to the design drawing
  • Substrate Material
    BeO
  • Porcelain Hat Material
    Al2O3
  • Lead
    99.99% Sterling Silver
  • Resistance Technology
    Thick Film
  • Operating Temperature
    -55 to +150 ℃
  • ROHS Compliant
    Yes
