RFTXX-150AM2310-6

by Flanged-Attenuator
RFHB04G18GPI Image

RF Solution offer a wide selection of Flanged Attenuator for global customers. RFTXX-150AM2310-6 is a Flanged Attenuator in Frequency Range of DC~6.0 GHz. It is made of high quality materials under a high standard, the Attenuation Value of this product is ①01-10 dB②15,17,20,21 dB③19 dB ④23,24 dB, Attenuation Tolerance is ①±0.8 dB②+0.5/-1.5 dB③+0.5/-2.0 dB ④±1.0 dB and VSWR Max is 1.25. The component has a good working performance and stability, it is ideal for handling a Rated Power of 150 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-150AM2310-6
  • Description
    DC~6.0 GHz Flanged Attenuator

General Parameters

  • Frequency Range
    DC~6.0 GHz
  • Attenuation Value
    ①01-10 dB②15,17,20,21 dB③19 dB ④23,24 dB
  • Attenuation Tolerance
    ①±0.8 dB②+0.5/-1.5 dB③+0.5/-2.0 dB ④±1.0 dB
  • VSWR Max
    1.25
  • Rated Power
    150 W
  • Impedance
    50 Ω
  • Temperature Coefficient Max
    150 ppm/℃
  • Size

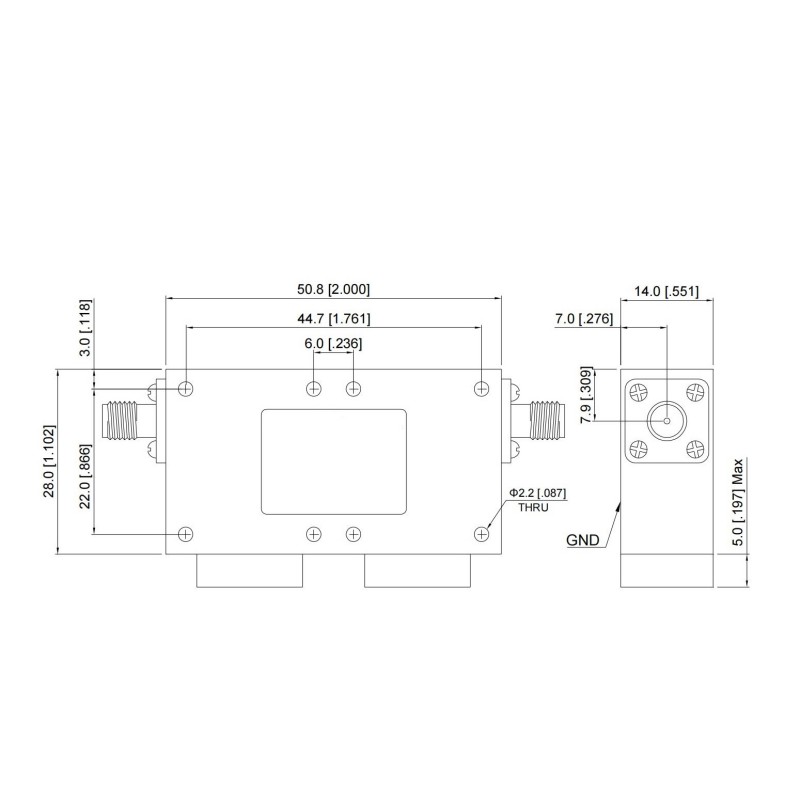

    Refer to the design drawing
  • Substrate Material
    BeO
  • Porcelain Hat Material
    Al2O3
  • Flange
    Nickel-plated Copper
  • Lead
    99.99% Sterling Silver
  • Resistance Technology
    Thick Film
  • Operating Temperature
    -55 to +150 ℃
  • ROHS Compliant
    Yes
