PD03-F3867-S-2-8GHz

by 3-Ways-Power-Divider
RFHB04G18GPI Image

RF Solution offer a wide selection of 3 Ways Power Divider for global customers. PD03-F3867-S-2-8GHz is a 3 Ways Power Divider in Frequency Range of 2.0~8.0 GHz. It is made of high quality materials under a high standard, the Insertion Loss Max of this product is 1.0 dB, Isolation Min is 18 dB and Amplitude Unbalance is ±0.6 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 30 W.

Product Specifications

Product Details

  • Part Number
    PD03-F3867-S-2-8GHz
  • Description
    2.0~8.0 GHz 3 Ways Power Divider

General Parameters

  • Frequency Range
    2.0~8.0 GHz
  • Insertion Loss Max
    1.0 dB
  • Isolation Min
    18 dB
  • Amplitude Unbalance
    ±0.6 dB
  • Forward Power
    30 W
  • Reverse Power
    1 W
  • VSWR Input Max
    1.40
  • VSWR Output Max
    1.30
  • Phase Unbalance
    ± 4°
  • Impedance
    50 Ω
  • Connector Type
    SMA-F

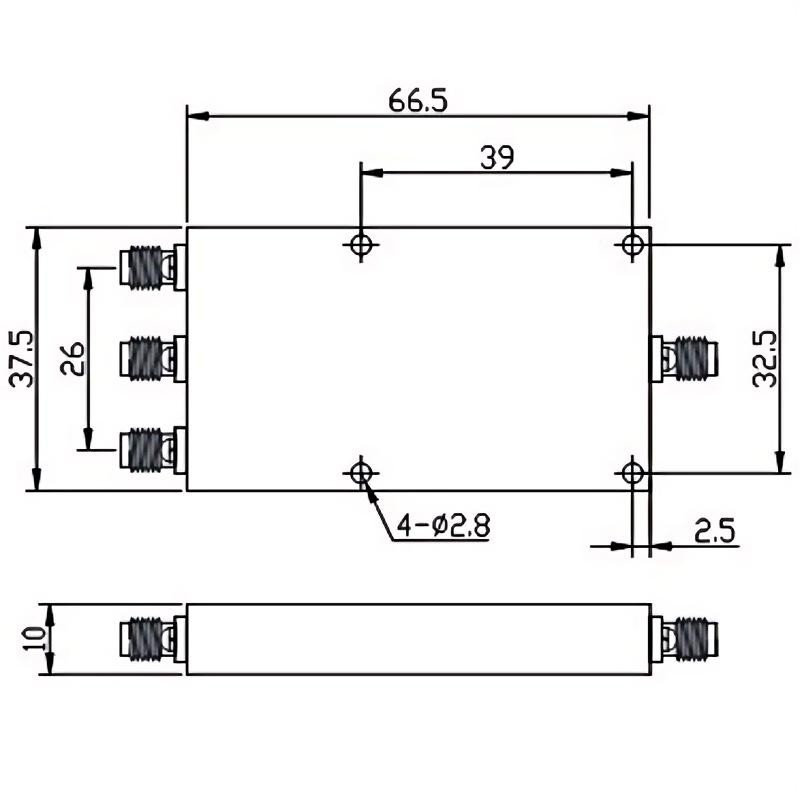

  • Size
    66.5*37.5*10 mm
  • Weight
    /
  • Surface Finishing
    Grey Painting
  • Operating Temperature
    -45~+85 °C
  • ROHS Compliant
    Yes
