RFTXX-50MA2525-4

by Microstrip-Attenuator
RFHB04G18GPI Image

RF Solution offer a wide selection of Microstrip Attenuator for global customers. RFTXX-50MA2525-4 is a Microstrip Attenuator in Frequency Range of DC~4.0 GHz. It is made of high quality materials under a high standard, the Attenuation Value of this product is ①3/6/10 dB ②15/20 dB ③30 dB, Attenuation Tolerance is ①±0.6 dB ②±0.8 dB ③± 1.0 dB and VSWR Max is 1.25 type 1.30. The component has a good working performance and stability, it is ideal for handling a Rated Power of 50 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-50MA2525-4
  • Description
    DC~4.0 GHz Microstrip Attenuator

General Parameters

  • Frequency Range
    DC~4.0 GHz
  • Attenuation Value
    ①3/6/10 dB ②15/20 dB ③30 dB
  • Attenuation Tolerance
    ①±0.6 dB ②±0.8 dB ③± 1.0 dB
  • VSWR Max
    1.25 type 1.30
  • Rated Power
    50 W
  • Impedance
    50 Ω

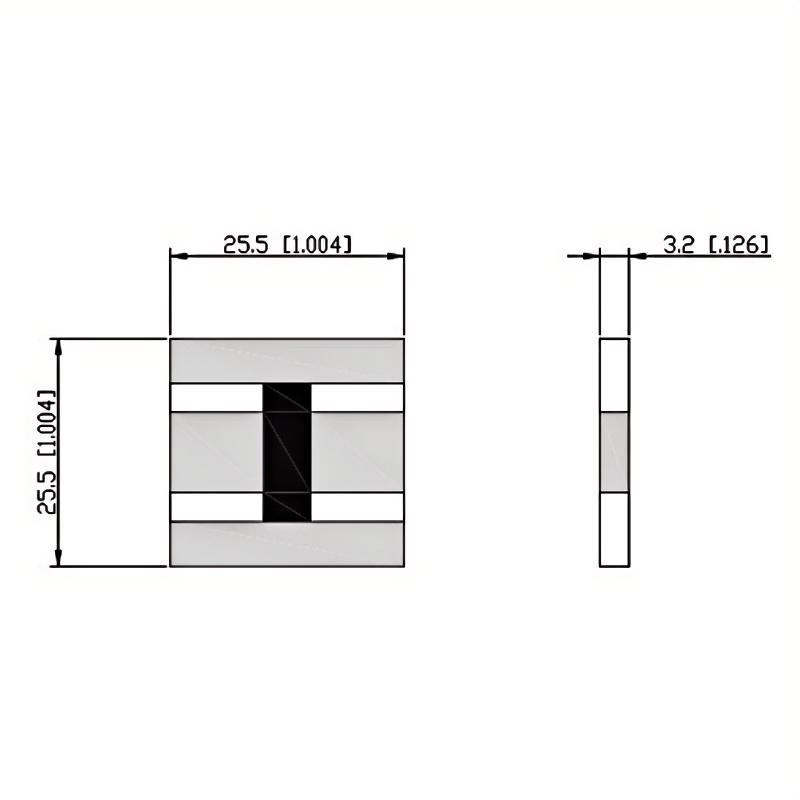

  • Size
    25.5.0*25.5*3.2 mm
  • Temperature Coefficient Max
    150 ppm/℃
  • Substrate Material
    BeO
  • Resistance Process
    Thick Film
  • Operating Temperature
    -55~+150 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
