TH2528XS-2222

by Coaxial-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Circulator for global customers. TH2528XS-2222 is a Coaxial Circulator in Frequency Range of 700~5000 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 25%, Insertion Loss Max is 0.15~0.60 dB and Isolation Min is 16.0~25.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100 W.

Product Specifications

Product Details

  • Part Number
    TH2528XS-2222
  • Description
    700 to 5000 MHz Coaxial Circulator

General Parameters

  • Frequency Range
    700~5000 MHz
  • Bandwidth Max
    25%
  • Insertion Loss Max
    0.15~0.60 dB
  • Isolation Min
    16.0~25.0 dB
  • Forward Power
    100 W
  • Power
    100 W
  • VSWR Max
    1.15~1.30
  • Impedance
    50 Ω
  • Connector Type
    SMA-K

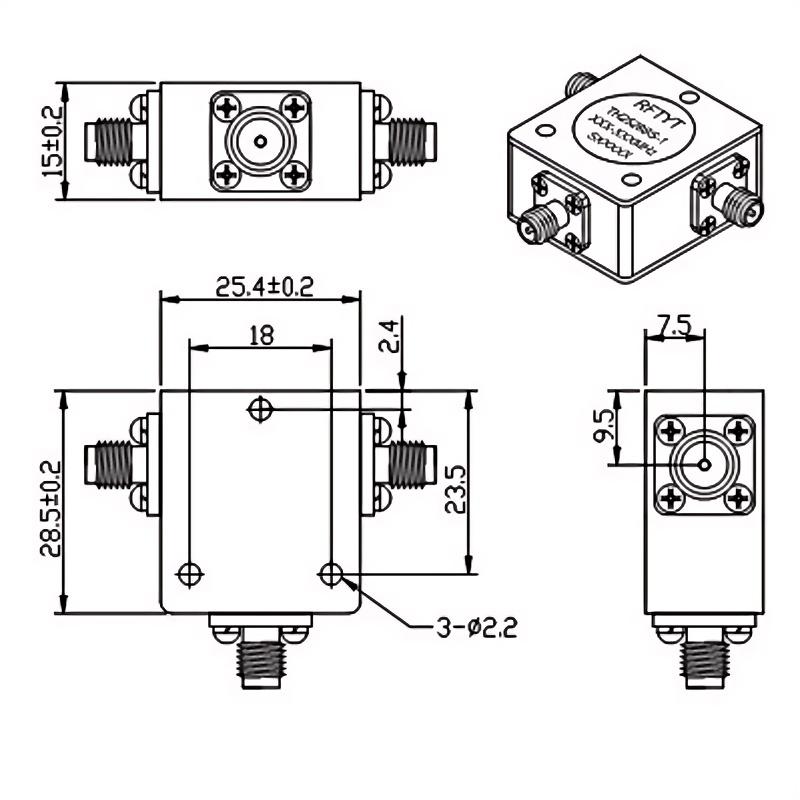

  • Size
    25.4*28.5*15.0 mm
  • Weight
    100 g
  • Operating Temperature
    -30~+70 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes
