WH6466H

by Drop-in-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Circulator for global customers. WH6466H is a Drop in Circulator in Frequency Range of 30~40 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 5%, Insertion Loss Max is 1.50~2.00 dB and Isolation Min is 18.0~20.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 50 W.

Product Specifications

Product Details

  • Part Number
    WH6466H
  • Description
    30 to 40 MHz Drop in Circulator

General Parameters

  • Frequency Range
    30~40 MHz
  • Bandwidth Max
    5%
  • Insertion Loss Max
    1.50~2.00 dB
  • Isolation Min
    18.0~20.0 dB
  • Power
    50 W
  • VSWR Max
    1.25~1.30
  • Impedance
    50 Ω
  • Connector Type
    /
  • Size

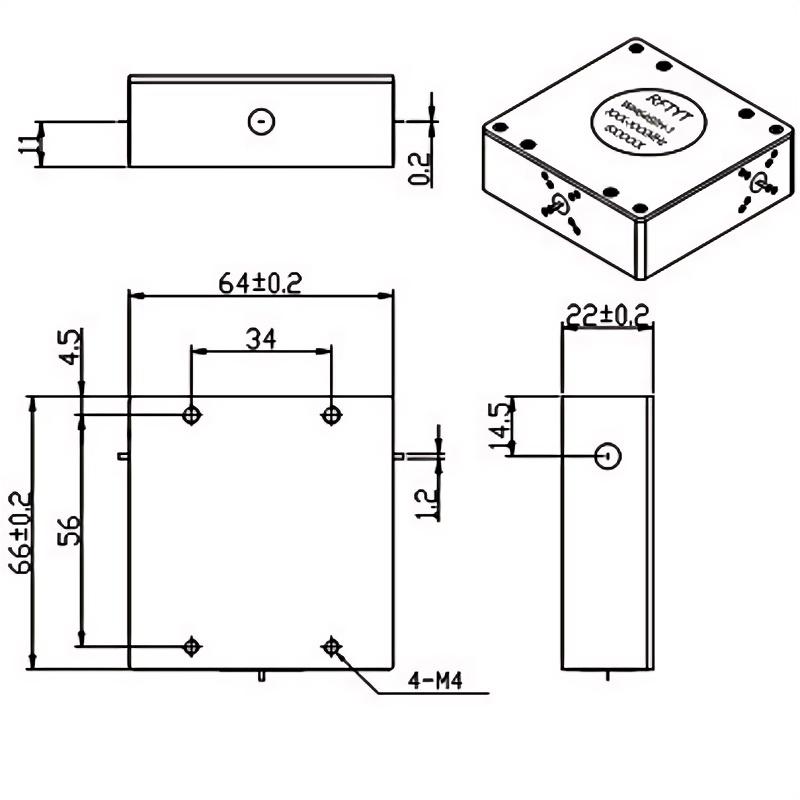

    64.0*66.0*22.0 mm
  • Weight
    ≈325 g
  • Operating Temperature
    -20~+70 ℃
  • Storage Temperature
    -40~+90 ℃
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Power （W） Choose
WH6466H-X/30.0-31.0MHz 30.0-31.0 2.0 18.0 1.30 50
WH6466H-X/31.0-32.0MHz 31.0-32.0 1.9 18.0 1.30 50
WH6466H-X/32.0-33.0MHz 32.0-33.0 1.8 18.0 1.30 50
WH6466H-X/33.0-34.0MHz 33.0-34.0 1.8 18.0 1.30 50
WH6466H-X/34.0-35.0MHz 34.0-35.0 1.7 18.0 1.30 50
WH6466H-X/35.0-37.0MHz 35.0-37.0 1.6 18.0 1.30 50
WH6466H-X/37.0-39.0MHz 37.0-39.0 1.6 18.0 1.30 50
WH6466H-X/39.0-41.0MHz 39.0-41.0 1.5 20.0 1.25 50
