WH1623D

by Drop-in-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Circulator for global customers. WH1623D is a Drop in Circulator in Frequency Range of 5.0~7.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 20%, Insertion Loss Max is 0.40~0.60 dB and Isolation Min is 18.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 50 W.

Product Specifications

Product Details

  • Part Number
    WH1623D
  • Description
    5.0 to 7.0 GHz Drop in Circulator

General Parameters

  • Frequency Range
    5.0~7.0 GHz
  • Bandwidth Max
    20%
  • Insertion Loss Max
    0.40~0.60 dB
  • Isolation Min
    18.0~23.0 dB
  • Power
    50 W
  • VSWR Max
    1.20~1.50
  • Impedance
    50 Ω
  • Connector Type
    /

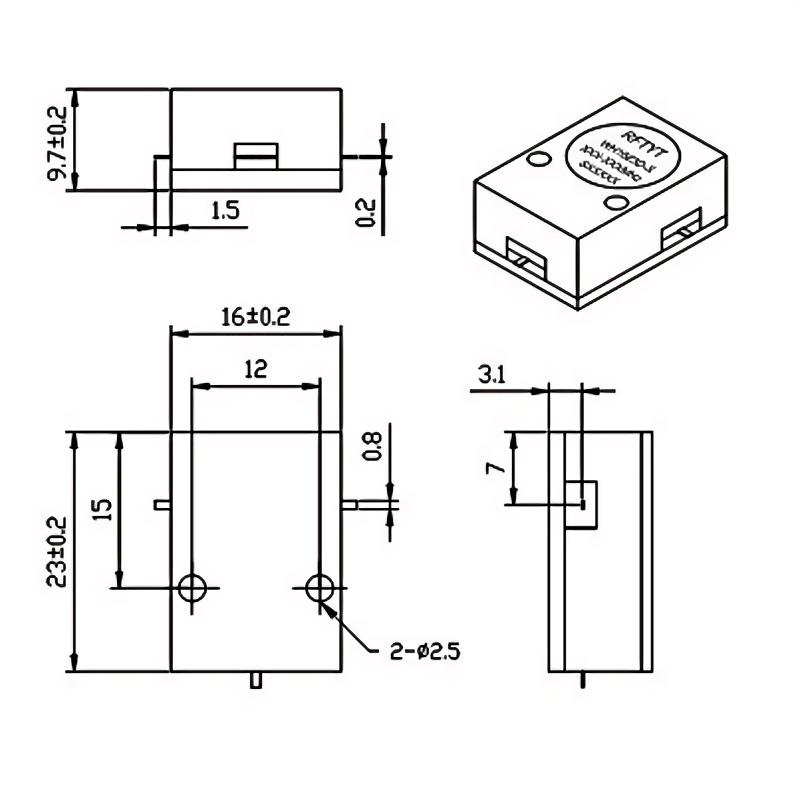

  • Size
    16.0*23.0*9.7 mm
  • Weight
    25 g
  • Operating Temperature
    -30~+70 ℃/-40~+85 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Power （W） Choose
WH1623D-X/5.0-6.0GHz 5.0-6.0 0.60 18.0 1.50 50
WH1623D-X/5.1-5.9GHz 5.1-5.9 0.50 18.0 1.50 50
WH1623D-X/5.15-5.875GHz 5.15-5.875 0.45 18.0 1.50 50
WH1623D-X/5.2-5.5GHz 5.2-5.5 0.40 20.0 1.25 50
WH1623D-X/5.25-5.85GHz 5.25-5.85 0.40 19.0 1.25 50
WH1623D-X/5.4-5.9GHz 5.4-5.9 0.40 20.0 1.20 50
WH1623D-X/5.6-7.0GHz 5.6-7.0 0.50 18.0 1.50 50
WH1623D-X/5.7-5.9GHz 5.7-5.9 0.50 23.0 1.20 50
WH1623D-X/5.725-5.875GHz 5.725-5.875 0.50 23.0 1.20 50
WH1623D-X/5.8-6.5GHz 5.8-6.5 0.40 20.0 1.25 50
WH1623D-X/6.57-6.87GHz 6.57-6.87 0.50 20.0 1.20 50
WH1623D-X/6.7-7.1GHz 6.7-7.1 0.40 20.0 1.20 50
WH1623D-X/7.1-7.3GHz 7.1-7.3 0.50 23.0 1.20 50
