WH5050X

by Drop-in-Circulator

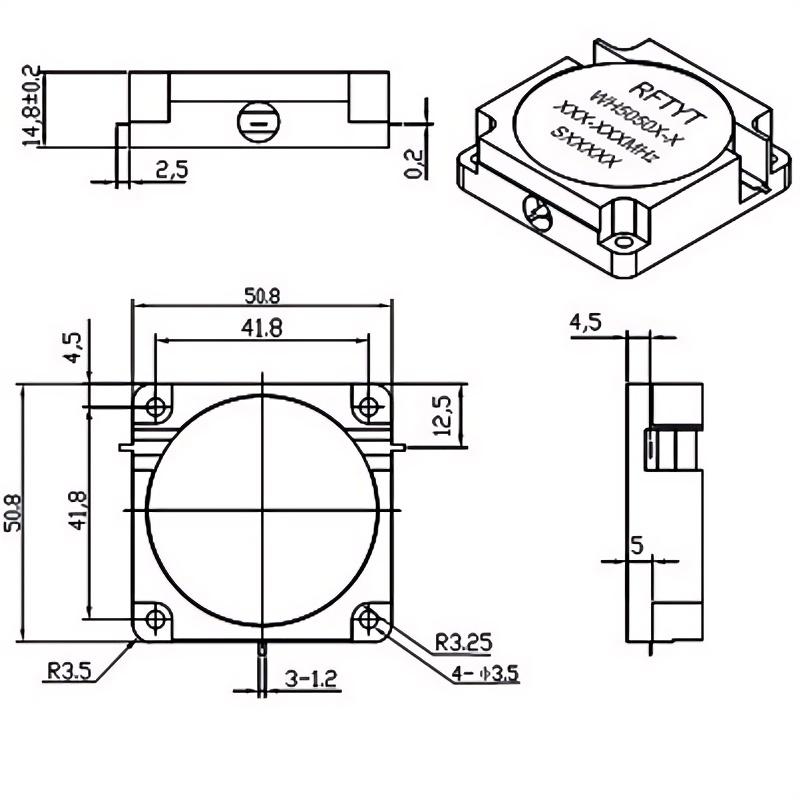

RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Circulator for global customers. WH5050X is a Drop in Circulator in Frequency Range of 160~330 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 20%, Insertion Loss Max is 0.30~0.90 dB and Isolation Min is 18.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 300 W.

Product Specifications

Product Details

  • Part Number
    WH5050X
  • Description
    160 to 330 MHz Drop in Circulator

General Parameters

  • Frequency Range
    160~330 MHz
  • Bandwidth Max
    20%
  • Insertion Loss Max
    0.30~0.90 dB
  • Isolation Min
    18.0~23.0 dB
  • Power
    300 W
  • VSWR Max
    1.20~1.30
  • Impedance
    50 Ω
  • Connector Type
    /
  • Size
    50.8*50.8*14.8 mm
  • Weight
    220 g
  • Operating Temperature
    -30~+70 ℃/-40~+85 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Power （W） Choose
WH5050X-X/160-166MHz 160-166 0.70 20.0 1.25 300
WH5050X-X/160-170MHz 160-170 0.90 18.0 1.30 300
WH5050X-X/180-184MHz 180-184 0.50 20.0 1.20 300
WH5050X-X/192-232MHz 192-232 0.60 18.0 1.30 300
WH5050X-X/200-210MHz 200-210 0.40 23.0 1.20 300
WH5050X-X/200-220MHz 200-220 0.40 20.0 1.25 300
WH5050X-X/215-223MHz 215-223 0.40 23.0 1.20 300
WH5050X-X/217-223MHz 217-223 0.40 23.0 1.20 300
WH5050X-X/220-240MHz 220-240 0.40 20.0 1.25 300
WH5050X-X/223-233MHz 223-233 0.40 23.0 1.20 300
WH5050X-X/225-270MHz 225-270 0.60 19.0 1.25 300
WH5050X-X/230-240MHz 230-240 0.40 23.0 1.20 300
WH5050X-X/235-255MHz 235-255 0.40 20.0 1.25 300
WH5050X-X/260-270MHz 260-270 0.30 23.0 1.20 300
WH5050X-X/260-330MHz 260-330 0.40 20.0 1.25 300
