WHH9050X

by Dual-Junction-Circulator

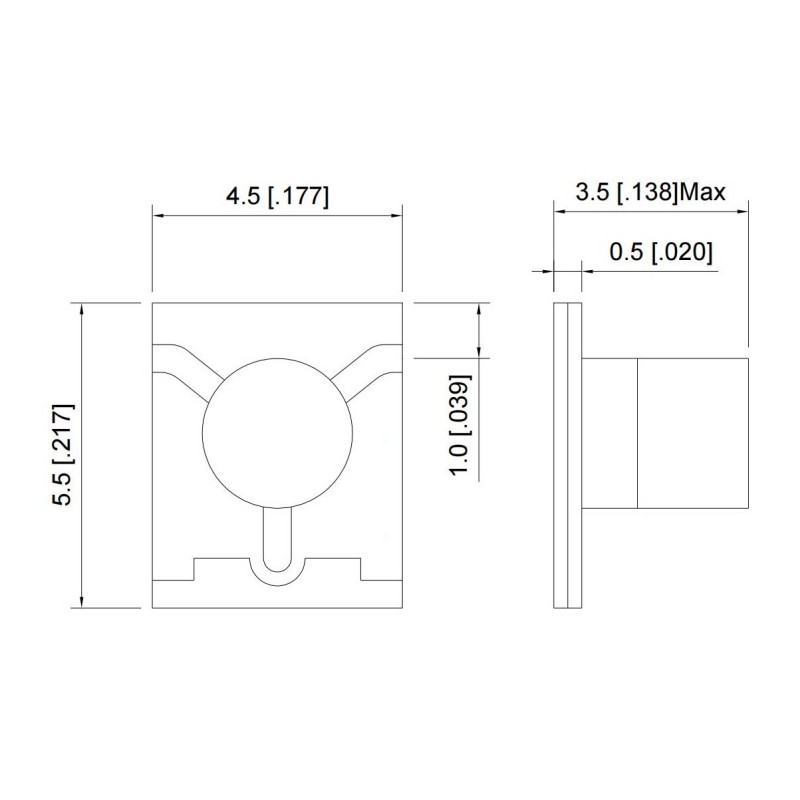

RFHB04G18GPI Image

RF Solution offer a wide selection of Dual Junction Circulator for global customers. WHH9050X is a Dual Junction Circulator in Frequency Range of 300~1250 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 20%, Insertion Loss Max is 0.60~1.60 dB and Isolation Min is 32.0~50.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 300 W.

Product Specifications

Product Details

  • Part Number
    WHH9050X
  • Description
    300 to 1250 MHz Dual Junction Circulator

General Parameters

  • Frequency Range
    300~1250 MHz
  • Bandwidth Max
    20%
  • Insertion Loss Max
    0.60~1.60 dB
  • Isolation Min
    32.0~50.0 dB
  • Forward Power
    300 W
  • VSWR Max
    1.15~1.50
  • Impedance
    50 Ω
  • Connector Type
    Strip line
  • Size
    90.0*49.0*18.0 mm
  • Weight
    /
  • Operating Temperature
    -30~+70 ℃/-40~+85 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Forward Power (W) Choose
WHH9050X-X/300-350MHz 300-350 1.0 40 1.25 300
WHH9050X-X/300-400MHz 300-400 1.2 36 1.30 300
WHH9050X-X/300-420MHz 300-420 1.6 32 1.40 300
WHH9050X-X/320-412MHz 320-412 1.6 36 1.40 300
WHH9050X-X/345-415MHz 345-415 1.2 40 1.25 300
WHH9050X-X/350-400MHz 350-400 0.7 40 1.20 300
WHH9050X-X/350-470MHz 350-470 1.0 38 1.25 300
WHH9050X-X/350-500MHz 350-500 1.4 32 1.40 300
WHH9050X-X/360-440MHz 360-440 0.9 40 1.25 300
WHH9050X-X/360-470MHz 360-470 1.0 40 1.25 300
WHH9050X-X/375-415MHz 375-415 0.8 40 1.25 300
WHH9050X-X/380-480MHz 380-480 1.0 36 1.30 300
WHH9050X-X/400-430MHz 400-430 0.5 50 1.15 300
WHH9050X-X/400-500MHz 400-500 1.0 36 1.30 300
WHH9050X-X/400-512MHz 400-512 1.0 36 1.30 300
WHH9050X-X/400-550MHz 400-550 1.2 36 1.30 300
WHH9050X-X/412-512MHz 412-512 1.0 36 1.30 300
WHH9050X-X/440-470MHz 440-470 0.5 50 1.15 300
WHH9050X-X/450-600MHz 450-600 1.0 36 1.30 300
WHH9050X-X/460-605MHz 460-605 1.0 36 1.30 300
WHH9050X-X/470-520MHz 470-520 0.8 40 1.25 300
WHH9050X-X/470-610MHz 470-610 1.0 36 1.30 300
WHH9050X-X/470-650MHz 470-650 1.2 36 1.30 300
WHH9050X-X/500-700MHz 500-700 1.2 46 1.30 300
WHH9050X-X/520-570MHz 520-570 0.6 46 1.20 300
WHH9050X-X/570-610MHz 570-610 0.6 30 1.20 300
WHH9050X-X/600-900MHz 600-900 1.6 30 1.50 300
WHH9050X-X/610-960MHz 610-960 1.6 40 1.50 300
WHH9050X-X/620-862MHz 620-862 1.0 36 1.25 300
WHH9050X-X/690-1000MHz 690-1000 1.2 40 1.30 300
WHH9050X-X/698-960MHz 698-960 1.0 36 1.25 300
WHH9050X-X/698-1000MHz 698-1000 1.2 38 1.30 300
WHH9050X-X/700-1000MHz 700-1000 1.2 40 1.25 300
WHH9050X-X/760-1010MHz 760-1010 1.0 46 1.25 300
WHH9050X-X/800-900MHz 800-900 0.6 40 1.20 300
WHH9050X-X/800-1000MHz 800-1000 1.0 46 1.25 300
WHH9050X-X/800-1200MHz 800-1200 1.2 40 1.40 300
WHH9050X-X/806-960MHz 806-960 0.6 32 1.20 300
WHH9050X-X/850-1000MHz 850-1000 0.8 40 1.25 300
WHH9050X-X/850-1150MHz 850-1150 1.0 40 1.25 300
WHH9050X-X/1010-1110MHz 1010-1110 0.6 40 1.20 300
WHH9050X-X/1200-1300MHz 1200-1300 0.6 46 1.20 300
