BH3838-WR62

by Waveguide-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Waveguide Circulator for global customers. BH3838-WR62 is a Waveguide Circulator in Frequency Range of 12.0~18.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 10/100%, Insertion Loss Max is 0.30~0.40 dB and Isolation Min is 20.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of /.

Product Specifications

Product Details

  • Part Number
    BH3838-WR62
  • Description
    12.0 to 18.0 GHz Waveguide Circulator

General Parameters

  • Frequency Range
    12.0~18.0 GHz
  • Bandwidth Max
    10/100%
  • Insertion Loss Max
    0.30~0.40 dB
  • Isolation Min
    20.0~23.0 dB
  • Forward Power
    /
  • VSWR Max
    1.15~1.25
  • Impedance
    50 Ω
  • Connector Type
    WR62

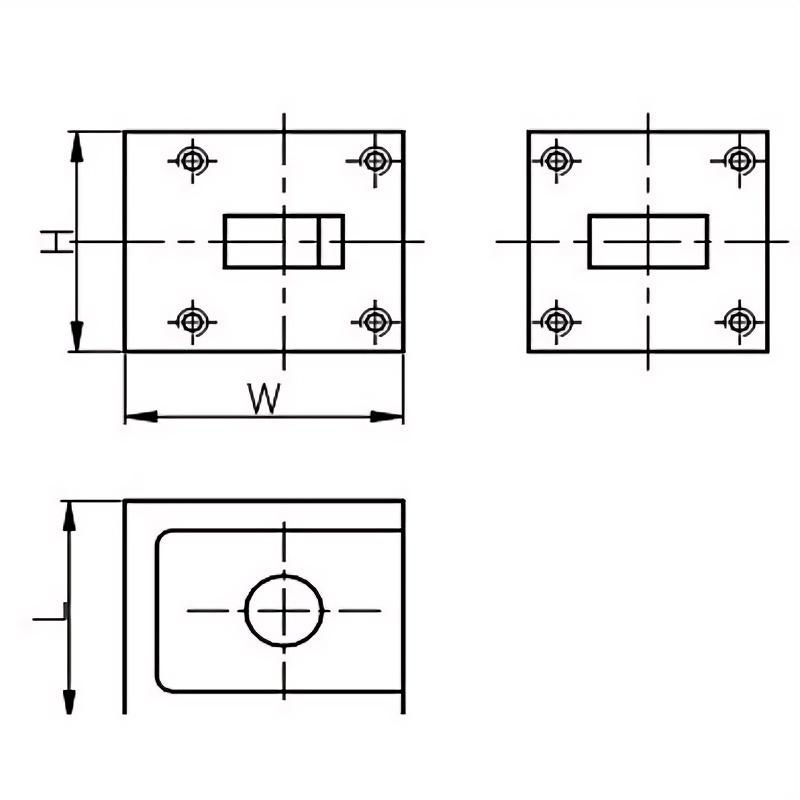

  • Size
    38*38*33 mm
  • Weight
    /
  • Operating Temperature
    -40~+80 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (GHz) Bandwidth Insertion Loss Max (dB) Isolation Min (dB) VSWR (Max) Choose
BH3838-WR62/12.0-18.0GHz 12.0-18.0 10% 0.30 23.0 1.15
BH3838-WR62/15.0-18.0GHz 15.0-18.0 FULL 0.40 20.0 1.25
