RF RF Termination Technology and Applications Analysis

RF Termination is a critical component in radio frequency (RF) systems, designed for signal absorption, impedance matching, and anti-interference. It is widely used in communications, testing, industrial control, and other fields. Its core technology lies in efficient signal processing through electromagnetic wave energy conversion and regulation. Below is an in-depth analysis of its technical principles, core functions, application scenarios, and development trends.

I. Technical Principles and Core Design

Impedance Matching and Energy Absorption

The primary function of RF terminations is to convert incident signal energy into heat by matching transmission line characteristic impedance (e.g., 50Ω or 75Ω), thereby suppressing signal reflection. For example, unterminated ports in coaxial systems cause signal reflection interference, while RF terminations reduce the reflection coefficient (VSWR <1.2) through precise impedance design, ensuring signal integrity.

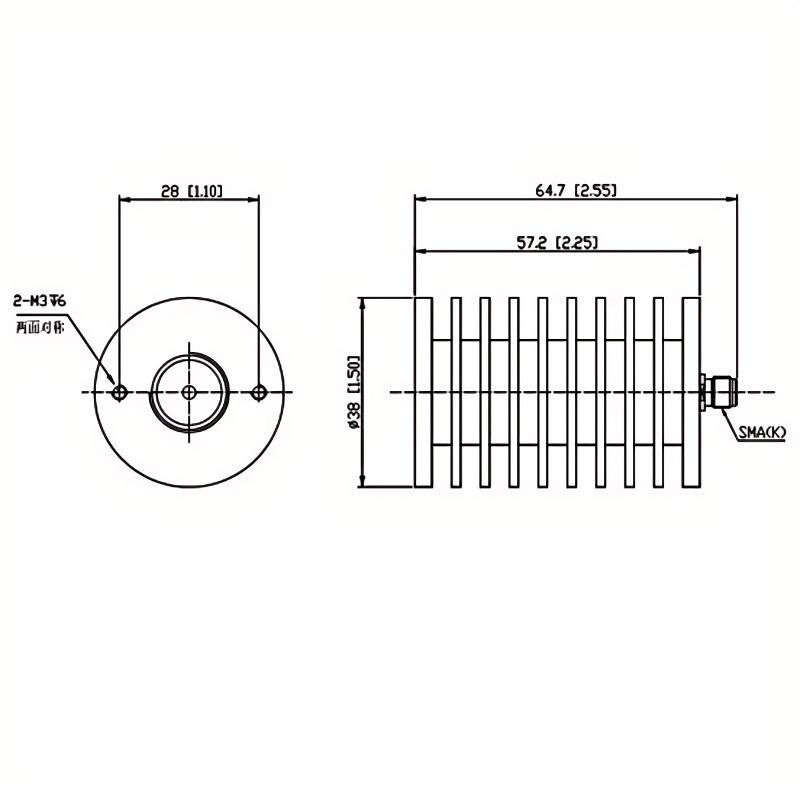

Power Handling: High-power terminations require heat sinks (e.g., anodized aluminum) or active cooling systems (e.g., liquid cooling) to sustain large power absorption. For instance, satellite communication terminations must withstand high-power signals in high-frequency bands.

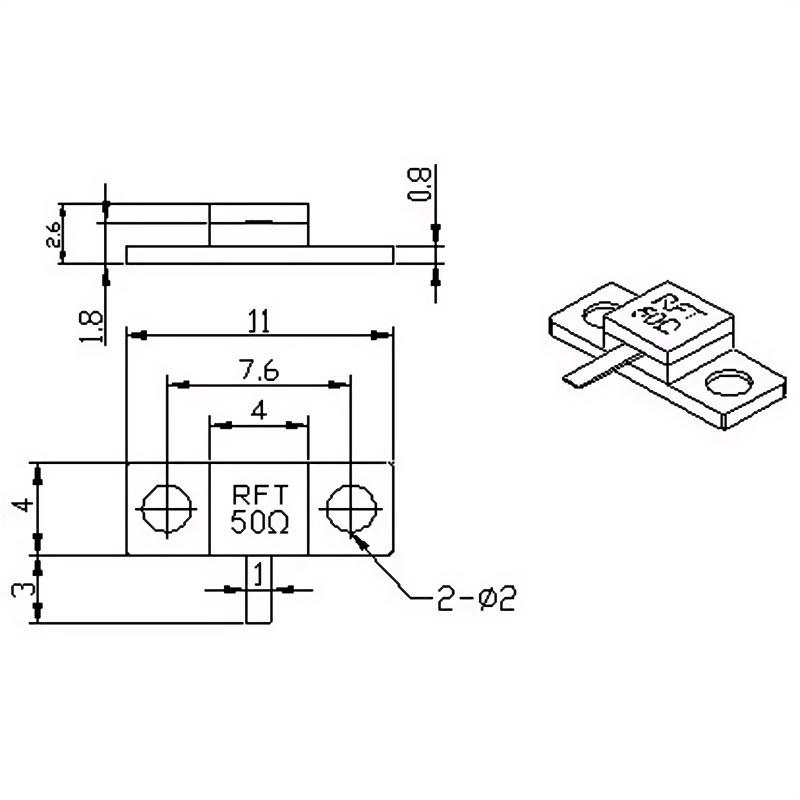

Material Selection: Waveguide terminations use RF-absorbing materials, while coaxial terminations rely on precision-engineered structures (e.g., ceramic substrates with metal housings) to minimize dielectric losses.

High-Frequency Performance Optimization

Parasitic Parameter Control: RF terminations suppress parasitic inductance (<0.5nH) and capacitance (<0.1pF) through thin-film processes and spiral layouts to reduce high-frequency signal distortion.

Broadband Support: Covering DC~40GHz and even millimeter-wave bands (e.g., 28GHz) to meet 5G and satellite communication requirements.

II. Core Functions and Classification

Key Features

High Isolation: Suppresses reflected signal interference, protecting transmitter and receiver circuits with isolation exceeding 30dB.

Multi-Scenario Adaptability: Supports applications from low-power test instruments (e.g., VNA calibration) to high-power industrial equipment (e.g., radar transmitters).

Classification

By Interface: Coaxial terminations (BNC, SMA interfaces) and waveguide terminations (e.g., WR-187 waveguide for 3.94–5.99GHz).

By Power Rating: Low-power terminations (test adapters), medium/high-power terminations (with heat sinks), and extreme-power terminations (liquid-cooled designs).

By Functionality: Multi-interface terminations (compatible with diverse connectors) and embedded terminations (integrated O-rings for leak prevention).

III. Typical Applications

Communication Systems

5G Base Stations and Satellite Communication: RF terminations enable antenna switching in base stations and signal absorption in ground stations to reduce multipath interference. For example, Maxscend’s RF front-end modules are used in satellite terminals for efficient millimeter-wave signal processing.

Massive MIMO Systems: Absorbs redundant signals in high-density antenna arrays to optimize channel capacity.

Testing and Industrial Control

Vector Network Analyzers (VNA): Unused test ports require 50Ω terminations to prevent reflections from damaging receiver circuits.

Industrial Radar and Automation: Terminations absorb sensor signals in production lines to enhance equipment stability.

Consumer Electronics and IoT

Smart Homes and Wearables: Miniaturized terminations integrated into Bluetooth/WiFi modules improve signal efficiency (e.g., Maxscend’s RF front-end solutions).

Logistics and Retail: Handheld RFID terminals enable non-contact inventory tracking and supply chain optimization.

IV. Technical Challenges and Future Trends

Technical Difficulties

High-Frequency Band Adaptation: Millimeter-wave bands (>110GHz) demand solutions for skin effect and dielectric losses, requiring new materials like gallium nitride (GaN).

Thermal Management and Reliability: Advanced cooling solutions are critical for high-power scenarios. For example, Tongfu Microelectronics’ DiFEM modules achieve a 99.9% packaging yield rate using selective cavity technology for heat dissipation.

Development Trends

Integration and Intelligence: System-in-Package (SiP) technology integrates terminations with filters and amplifiers (e.g., Antenna-in-Package (AiP) modules) to reduce PCB footprint.

AI-Driven Design Optimization: Deep learning aids RF circuit design—AI-generated millimeter-wave amplifiers now rival traditional designs, potentially reshaping engineering workflows.

Localization Acceleration: Chinese manufacturers like Tongfu Microelectronics and Maxscend are advancing high-end packaging for 5G base stations and automotive IoT.

V. Conclusion

As the "safety valve" of RF systems, RF terminations balance impedance matching, power dissipation, and high-frequency stability. Their applications span 5G communications, satellite navigation, industrial automation, and smart homes. With breakthroughs in millimeter-wave technology, AI design, and advanced materials, RF terminations will evolve toward higher integration and intelligence, becoming indispensable for next-generation wireless systems.
