RFTXX-30CR6363C

by Chip-Resistor
RFHB04G18GPI Image

RF Solution offer a wide selection of Chip Resistor for global customers. RFTXX-30CR6363C is a Chip Resistor in Resistance Range of XX Ω (10~3000Ω Customizable). It is made of high quality materials under a high standard, the Resistance Tolerance of this product is ±5%, Substrate Material is BeO and Resistive Element is Thick Film. The component has a good working performance and stability, it is ideal for handling a Power of 30 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-30CR6363C
  • Description
    Power 30 W Chip Resistor

General Parameters

  • Resistance Range
    XX Ω (10~3000Ω Customizable)
  • Resistance Tolerance
    ±5%
  • Substrate Material
    BeO
  • Resistive Element
    Thick Film
  • Power
    30 W
  • Temperature Coefficient Max
    150 ppm/℃

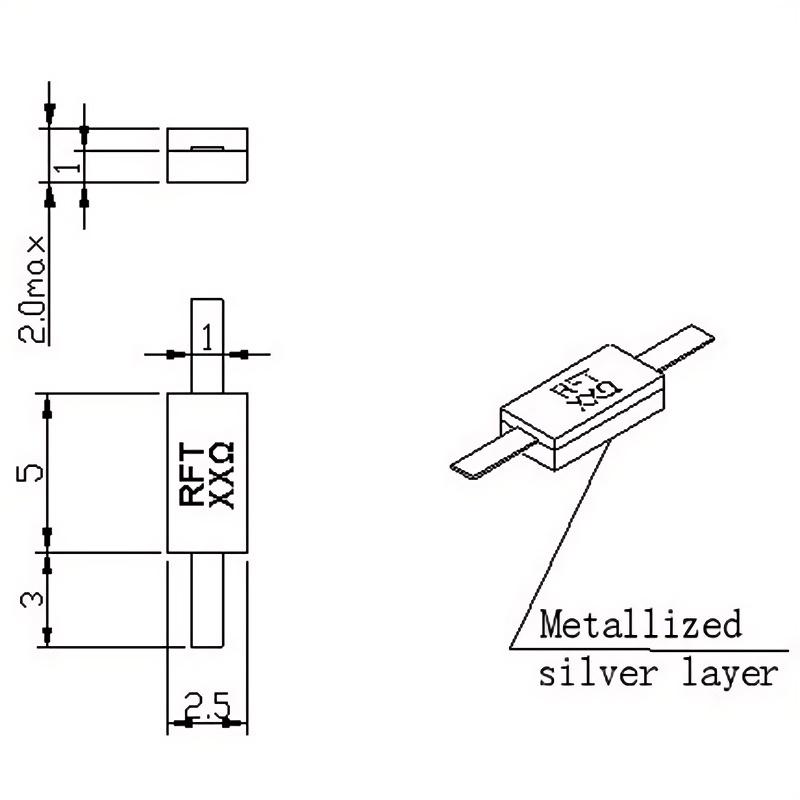

  • Size
    Refer to the design drawing
  • Operating Temperature
    -55~+150 °C
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
