RFTXXN-20CA5025C-6

by Chip-Attenuator
RFHB04G18GPI Image

RF Solution offer a wide selection of Chip Attenuator for global customers. RFTXXN-20CA5025C-6 is a Chip Attenuator in Frequency Range of DC~6.0 GHz. It is made of high quality materials under a high standard, the Attenuation Value of this product is ①01-10 dB②11-20 dB③21-30 dB, Attenuation Tolerance is ①±0.6 dB②±0.8 dB③±1.0dB and VSWR Max is 1.25. The component has a good working performance and stability, it is ideal for handling a Power of 20 W.

Product Specifications

Product Details

  • Part Number
    RFTXXN-20CA5025C-6
  • Description
    DC~6.0 GHz Chip Attenuator

General Parameters

  • Frequency Range
    DC~6.0 GHz
  • Attenuation Value
    ①01-10 dB②11-20 dB③21-30 dB
  • Attenuation Tolerance
    ①±0.6 dB②±0.8 dB③±1.0dB
  • VSWR Max
    1.25
  • Power
    20 W
  • Impedance
    50 Ω
  • Temperature Coefficient Max
    150 ppm/℃

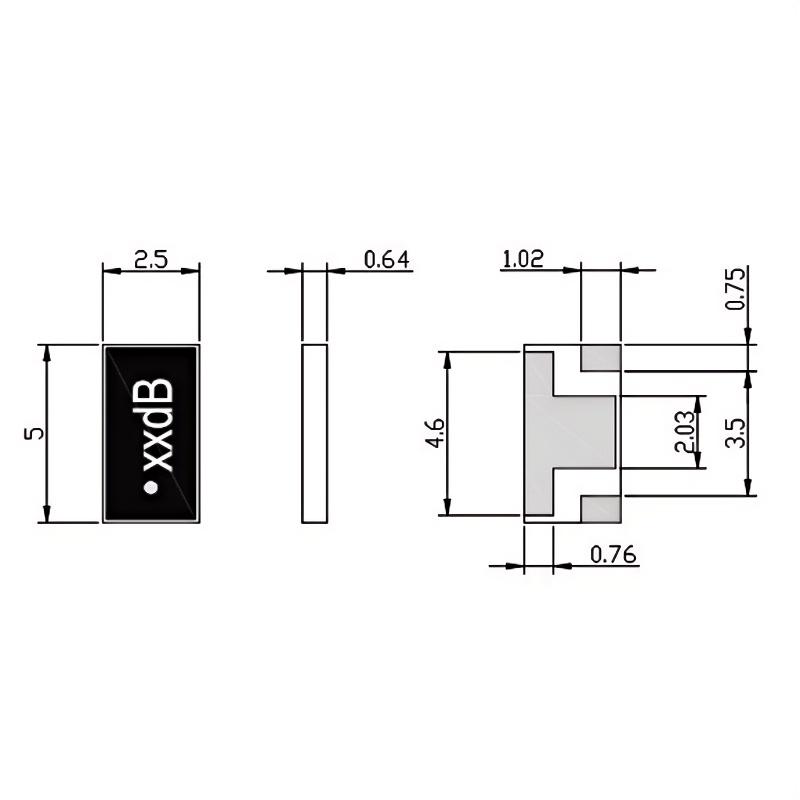

  • Size
    5.0*2.5*0.64 mm
  • Substrate Material
    AlN
  • Resistance Technology
    Thick Film
  • Operating Temperature
    -55 to +150 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
