WHH14566K

by Dual-Junction-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Dual Junction Circulator for global customers. WHH14566K is a Dual Junction Circulator in Frequency Range of 1.0~2.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.65~1.30 dB and Isolation Min is 17.0~32.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100 W.

Product Specifications

Product Details

  • Part Number
    WHH14566K
  • Description
    1.0 to 2.0 GHz Dual Junction Circulator

General Parameters

  • Frequency Range
    1.0~2.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.65~1.30 dB
  • Isolation Min
    17.0~32.0 dB
  • Forward Power
    100 W
  • VSWR Max
    1.40
  • Impedance
    50 Ω
  • Connector Type
    Strip line

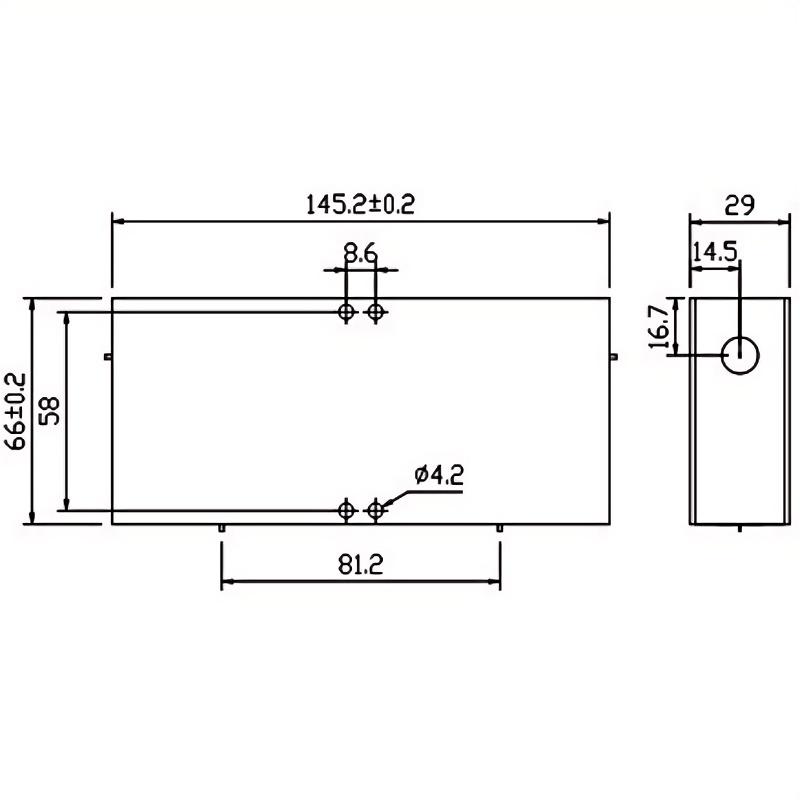

  • Size
    145.0*66.0*29.0 mm
  • Weight
    /
  • Operating Temperature
    -10~+60 ℃
  • Storage Temperature
    -30~+70 ℃
  • ROHS Compliant
    Yes
