RFTXX-150AM2595B-3

by Flanged-Attenuator
RFHB04G18GPI Image

RF Solution offer a wide selection of Flanged Attenuator for global customers. RFTXX-150AM2595B-3 is a Flanged Attenuator in Frequency Range of DC~3.0 GHz. It is made of high quality materials under a high standard, the Attenuation Value of this product is ①12 dB②30 dB, Attenuation Tolerance is ①±0.7 dB②±1.0 dB and VSWR Max is 1.25. The component has a good working performance and stability, it is ideal for handling a Rated Power of 150 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-150AM2595B-3
  • Description
    DC~3.0 GHz Flanged Attenuator

General Parameters

  • Frequency Range
    DC~3.0 GHz
  • Attenuation Value
    ①12 dB②30 dB
  • Attenuation Tolerance
    ①±0.7 dB②±1.0 dB
  • VSWR Max
    1.25
  • Rated Power
    150 W
  • Impedance
    50 Ω
  • Temperature Coefficient Max
    150 ppm/℃

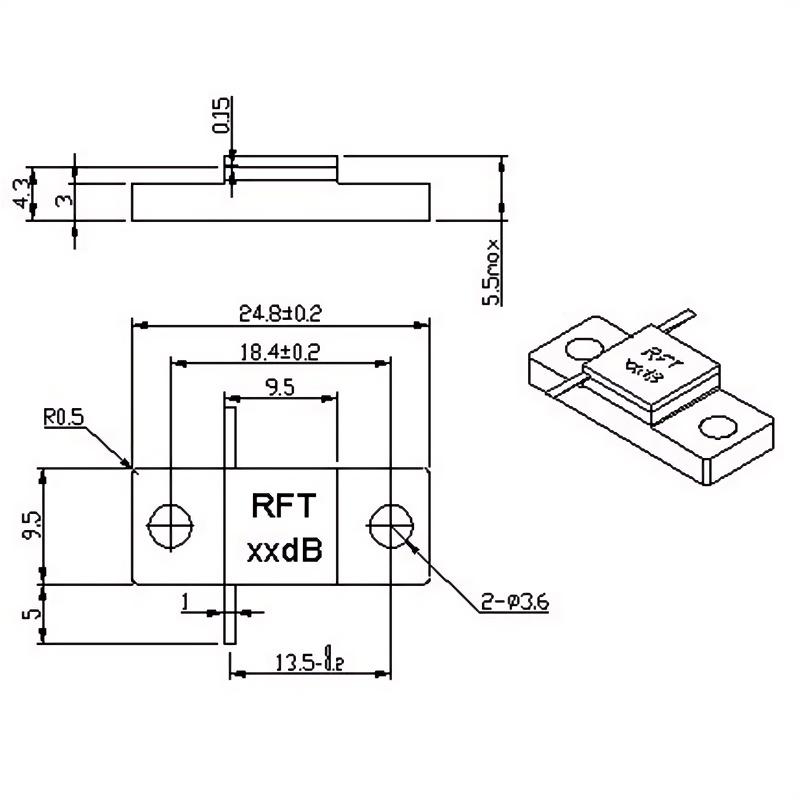

  • Size
    Refer to the design drawing
  • Substrate Material
    BeO
  • Porcelain Hat Material
    Al2O3
  • Flange
    Nickel-plated Copper
  • Lead
    99.99% Sterling Silver
  • Resistance Technology
    Thick Film
  • Operating Temperature
    -55 to +150 ℃
  • ROHS Compliant
    Yes
