PD02-F3034-S-3.0-3.5GHz

by 2-Ways-Power-Divider
RFHB04G18GPI Image

RF Solution offer a wide selection of 2 Ways Power Divider for global customers. PD02-F3034-S-3.0-3.5GHz is a 2 Ways Power Divider in Frequency Range of 3.0~3.5 GHz. It is made of high quality materials under a high standard, the Insertion Loss Max of this product is 0.5 dB, Isolation Min is 20 dB and Amplitude Balance is ±0.2 dB. The component has a good working performance and stability, it is ideal for handling a Power Rating of 20 W.

Product Specifications

Product Details

  • Part Number
    PD02-F3034-S-3.0-3.5GHz
  • Description
    3.0~3.5 GHz 2 Ways Power Divider

General Parameters

  • Frequency Range
    3.0~3.5 GHz
  • Insertion Loss Max
    0.5 dB
  • Isolation Min
    20 dB
  • Amplitude Balance
    ±0.2 dB
  • Power Rating
    20 W
  • Reverse Power
    2 W
  • VSWR Input Max
    1.30
  • VSWR Output Max
    1.20
  • Phase Balance
    ± 3°
  • Impedance
    50 Ω
  • Connector Type
    SMA-Female

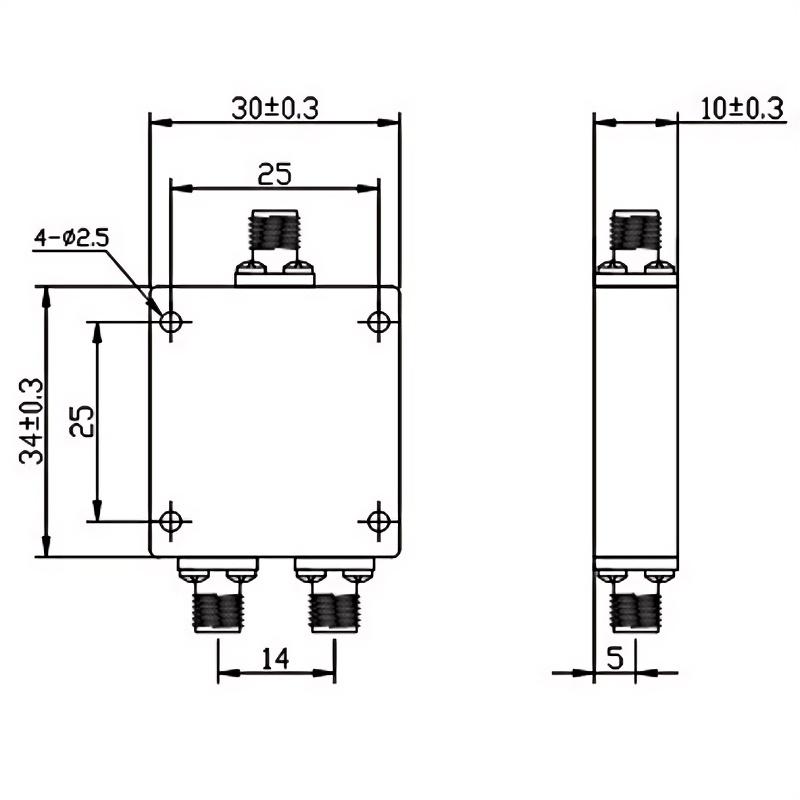

  • Size
    30*34*10 mm
  • Surface Finishing
    Grey Painting
  • Operating Temperature
    -40~+80 °C
  • Storage Temperature
    -45~+85℃
  • ROHS Compliant
    Yes
