RFTXX-50RA3810-N-12.4

by Coaxial-Fixed-Attenuator
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Fixed Attenuator for global customers. RFTXX-50RA3810-N-12.4 is a Coaxial Fixed Attenuator in Frequency Range of DC~12.4 GHz. It is made of high quality materials under a high standard, the VSWR Max of this product is 1.40, Attenuation Value is ①3 dB ②6 dB ③10 dB ④20 dB ⑤30 dB ⑥40 dB and Attenuation Tolerance is -1.5 dB/+2.5 dB. The component has a good working performance and stability, it is ideal for handling a Power of 50 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-50RA3810-N-12.4
  • Description
    DC~12.4 GHz Coaxial Fixed Attenuator

General Parameters

  • Frequency Range
    DC~12.4 GHz
  • VSWR Max
    1.40
  • Attenuation Value
    ①3 dB ②6 dB ③10 dB ④20 dB ⑤30 dB ⑥40 dB
  • Attenuation Tolerance
    -1.5 dB/+2.5 dB
  • Power
    50 W
  • Impedance
    50 Ω
  • Connector Type
    N-J(M)/N-K(F)

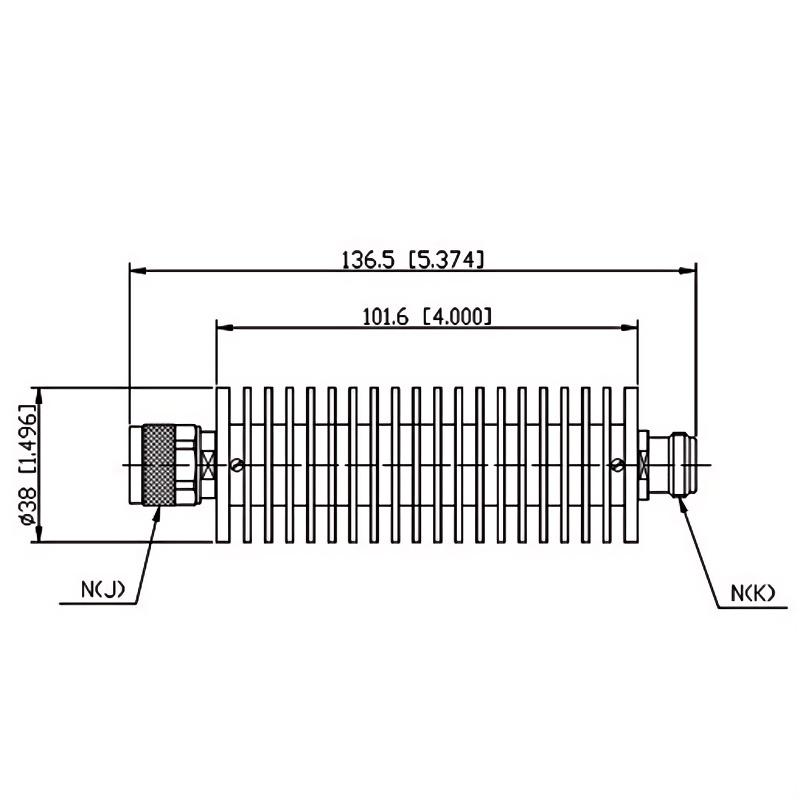

  • Size
    Φ38.0×136.5 mm
  • Weight
    220 g
  • Operating Temperature
    -55~+125 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
