RFTXX-50FA5070B-N-6

by Coaxial-Fixed-Attenuator
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Fixed Attenuator for global customers. RFTXX-50FA5070B-N-6 is a Coaxial Fixed Attenuator in Frequency Range of DC~6.0 GHz. It is made of high quality materials under a high standard, the VSWR Max of this product is 1.20, Attenuation Value is ①01-10 dB ②11-20 dB ③21-40 dB ④50, 60 dB and Attenuation Tolerance is ①±0.6 dB ②±0.8 dB ③±1.0 dB ④±1.2 dB. The component has a good working performance and stability, it is ideal for handling a Power of 50 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-50FA5070B-N-6
  • Description
    DC~6.0 GHz Coaxial Fixed Attenuator

General Parameters

  • Frequency Range
    DC~6.0 GHz
  • VSWR Max
    1.20
  • Attenuation Value
    ①01-10 dB ②11-20 dB ③21-40 dB ④50, 60 dB
  • Attenuation Tolerance
    ①±0.6 dB ②±0.8 dB ③±1.0 dB ④±1.2 dB
  • Power
    50 W
  • Impedance
    50 Ω

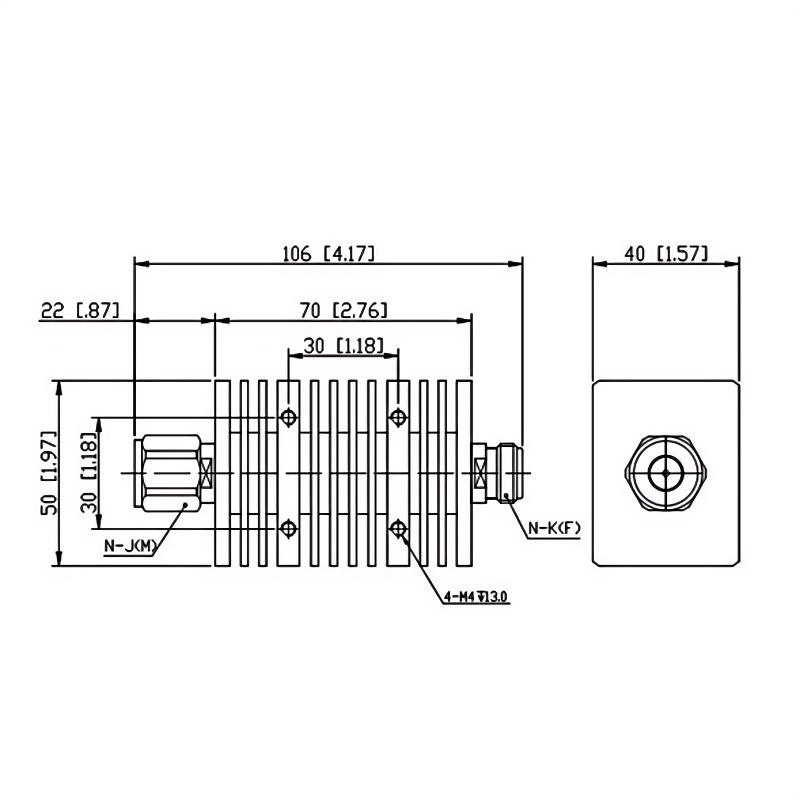

  • Connector Type
    N-J(M)/N-K(F)
  • Size
    50.0×109.4×40.0 mm
  • Weight
    180 g
  • Operating Temperature
    -55~+125 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
