HPF-5.85G18A-S

by High-Pass-Filter
RFHB04G18GPI Image

RF Solution offer a wide selection of High Pass Filter for global customers. HPF-5.85G18A-S is a High Pass Filter in Frequency Range of 5.85~18.0 GHz. It is made of high quality materials under a high standard, the Insertion Loss Max of this product is 2.0 dB, Rejection Min is 60dB@DC-3919.5MHz and VSWR Max is 2.00. The component has a good working performance and stability, it is ideal for handling a Rated Power of 20 W.

Product Specifications

Product Details

  • Part Number
    HPF-5.85G18A-S
  • Description
    5.85~18.0 GHz High Pass Filter

General Parameters

  • Frequency Range
    5.85~18.0 GHz
  • Insertion Loss Max
    2.0 dB
  • Rejection Min
    60dB@DC-3919.5MHz
  • VSWR Max
    2.00
  • Rated Power
    20 W
  • Impedance
    50 Ω
  • Connector Type
    SMA-F

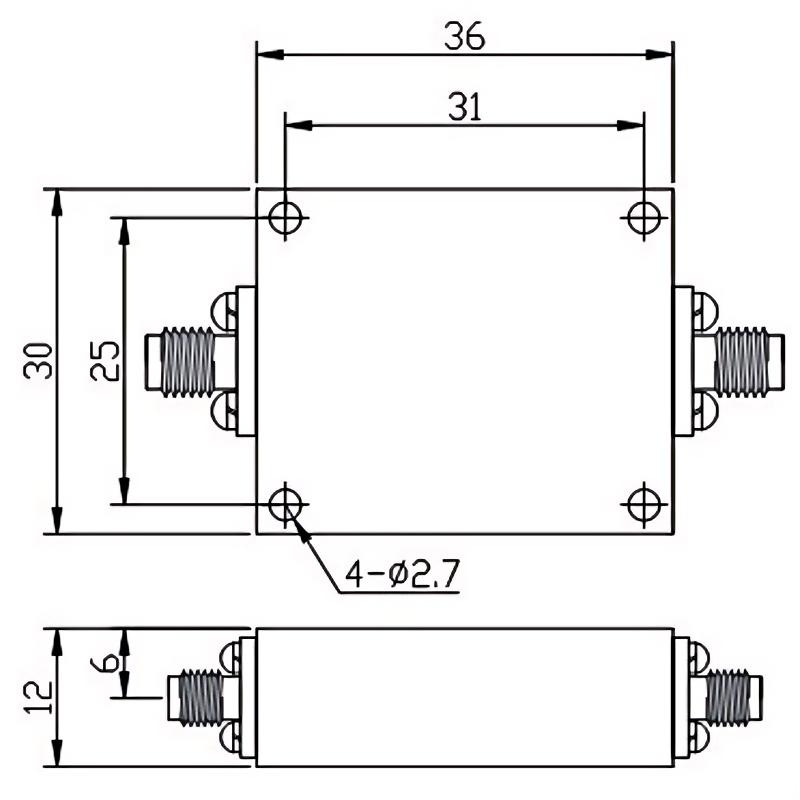

  • Size
    36*30*12 mm
  • Weight
    /
  • Surface Finishing
    Black Painting
  • Operating Temperature
    Ordinary Temperature
  • Storage Temperature
    -55~+85 °C
  • ROHS Compliant
    Yes
