HPF-6G24A-S

by High-Pass-Filter
RFHB04G18GPI Image

RF Solution offer a wide selection of High Pass Filter for global customers. HPF-6G24A-S is a High Pass Filter in Frequency Range of 6.0~24.0 GHz. It is made of high quality materials under a high standard, the Insertion Loss Max of this product is 2.0 dB, Rejection Min is 60dB@DC-5400MHz and VSWR Max is 1.80. The component has a good working performance and stability, it is ideal for handling a Rated Power of 15 W.

Product Specifications

Product Details

  • Part Number
    HPF-6G24A-S
  • Description
    6.0~24.0 GHz High Pass Filter

General Parameters

  • Frequency Range
    6.0~24.0 GHz
  • Insertion Loss Max
    2.0 dB
  • Rejection Min
    60dB@DC-5400MHz
  • VSWR Max
    1.80
  • Rated Power
    15 W
  • Impedance
    50 Ω
  • Connector Type
    SMA-F

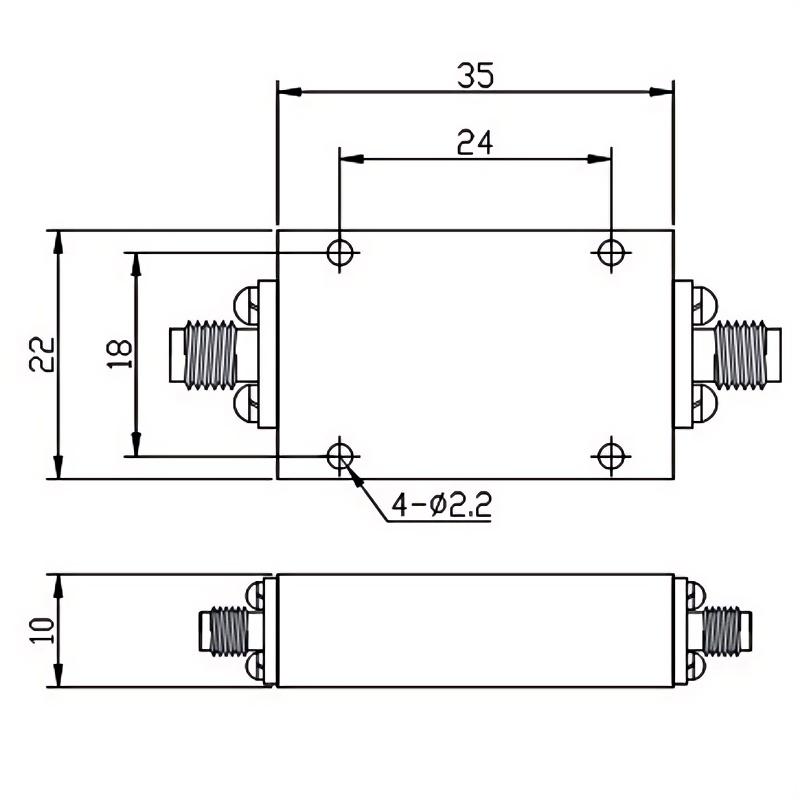

  • Size
    35*22*10 mm
  • Weight
    /
  • Surface Finishing
    Black Painting
  • Operating Temperature
    Ordinary Temperature
  • Storage Temperature
    -55~+85 °C
  • ROHS Compliant
    Yes
