RFTXX-20TA1419-10

by Microstrip-Attenuator-with-Sleeve
RFHB04G18GPI Image

RF Solution offer a wide selection of Microstrip Attenuator with Sleeve for global customers. RFTXX-20TA1419-10 is a Microstrip Attenuator with Sleeve in Frequency Range of DC~10.0 GHz. It is made of high quality materials under a high standard, the Attenuation Value of this product is ①01-10 dB ②11-20 dB ③21-30 dB ④40/50dB, Attenuation Tolerance is ①±0.5 dB ②±0.6 dB ③± 1.0 dB ④± 1.2 dB and VSWR Max is 1.25 type 1.3. The component has a good working performance and stability, it is ideal for handling a Power of 20 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-20TA1419-10
  • Description
    DC~10.0 GHz Microstrip Attenuator With Sleeve

General Parameters

  • Frequency Range
    DC~10.0 GHz
  • Attenuation Value
    ①01-10 dB ②11-20 dB ③21-30 dB ④40/50dB
  • Attenuation Tolerance
    ①±0.5 dB ②±0.6 dB ③± 1.0 dB ④± 1.2 dB
  • VSWR Max
    1.25 type 1.3
  • Power
    20 W
  • Impedance
    50 Ω

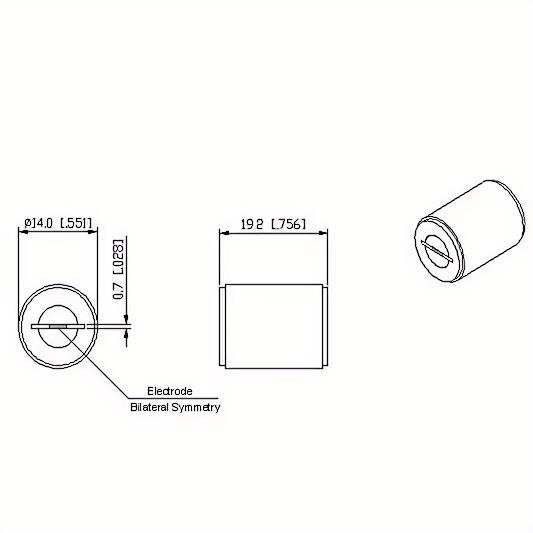

  • Size
    Φ14.0*19.2 mm
  • Temperature Coefficient Max
    150 ppm/℃
  • Substrate Material
    BeO
  • Sleeve Material
    Al (Conductive oxidation)
  • Resistance Process
    Thick Film
  • Operating Temperature
    -55 ~+125°C
  • ROHS Compliant
    Yes
