SMTH-D15

by Surface-Mount-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Surface Mount Circulator for global customers. SMTH-D15 is a Surface Mount Circulator in Frequency Range of 1000~5000 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 5%, Insertion Loss Max is 0.25~0.40 dB and Isolation Min is 20.0~25.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 60 W.

Product Specifications

Product Details

  • Part Number
    SMTH-D15
  • Description
    1000 to 5000 MHz Surface Mount Circulator

General Parameters

  • Frequency Range
    1000~5000 MHz
  • Bandwidth Max
    5%
  • Insertion Loss Max
    0.25~0.40 dB
  • Isolation Min
    20.0~25.0 dB
  • Power
    60 W
  • VSWR Max
    1.15~1.25
  • Impedance
    50 Ω
  • Connector Type
    SMT

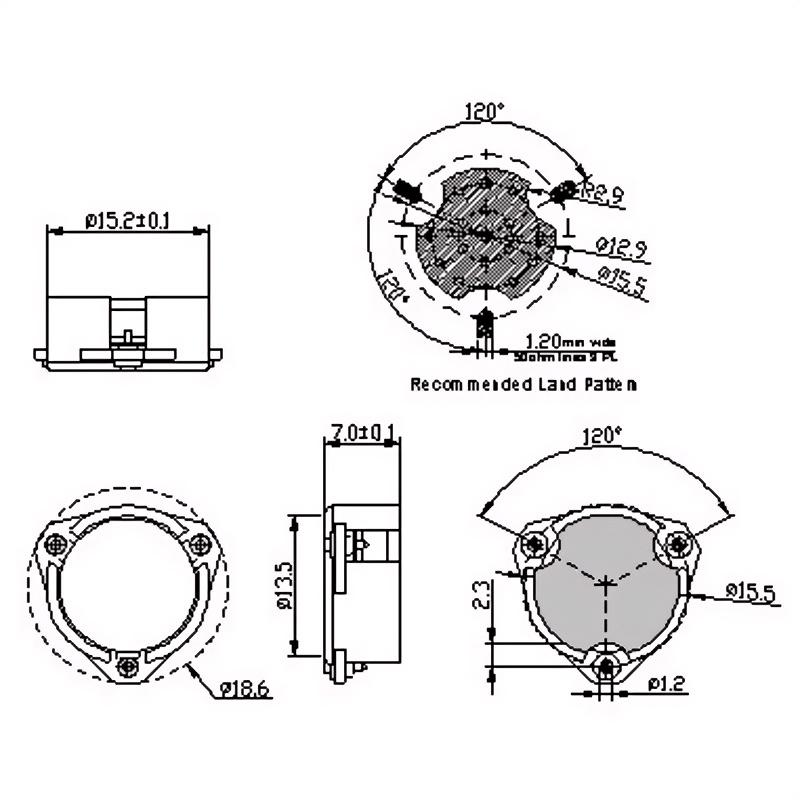

  • Size
    Φ12.5*7.0 mm
  • Weight
    5 g
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Power （CW） Choose
SMTH-D15-X/1000-1080MHz 1000-1080 0.50 20.0 1.25 60
SMTH-D15-X/1240-1260MHz 1240-1260 0.40 20.0 1.25 60
SMTH-D15-X/1350-1410MHz 1350-1410 0.40 20.0 1.25 60
SMTH-D15-X/1800-1870MHz 1870 0.30 23.0 1.20 60
SMTH-D15-X/2400-2600MHz 2400-2600 0.40 20.0 1.25 60
SMTH-D15-X/3100-3400MHz 3100-3400 0.40 20.0 1.25 60
SMTH-D15-X/3240-3340MHz 3240-3340 30 23.0 1.20 60
SMTH-D15-X/3620-3630MHz 3620-3630 0.25 25.0 1.15 60
SMTH-D15-X/3650-3750MHz 3650-3750 0.30 23.0 1.20 60
SMTH-D15-X/3700-3800MHz 3700-3800 0.30 23.0 1.20 60
SMTH-D15-X/3800-4100MHz 3800-4100 0.40 20.0 1.25 60
SMTH-D15-X/4000-4100MHz 4000-4100 0.30 23.0 1.20 60
SMTH-D15-X/4200-4400MHz 4200-4400 0.30 23.0 1.20 60
SMTH-D15-X/4500-4700MHz 4500-4700 0.30 23.0 1.20 60
SMTH-D15-X/4800-5000MHz 4800-5000 0.30 23.0 1.20 60
