RFTXX-10RA1732-SMA-6

by Coaxial-Fixed-Attenuator
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Fixed Attenuator for global customers. RFTXX-10RA1732-SMA-6 is a Coaxial Fixed Attenuator in Frequency Range of DC~6.0 GHz. It is made of high quality materials under a high standard, the VSWR Max of this product is 1.20, Attenuation Value is ①1-10 dB②11-20 dB③21-30,40 dB and Attenuation Tolerance is ①±0.6 dB②±0.8 dB③±1.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 10 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-10RA1732-SMA-6
  • Description
    DC~6.0 GHz Coaxial Fixed Attenuator

General Parameters

  • Frequency Range
    DC~6.0 GHz
  • VSWR Max
    1.20
  • Attenuation Value
    ①1-10 dB②11-20 dB③21-30,40 dB
  • Attenuation Tolerance
    ①±0.6 dB②±0.8 dB③±1.0 dB
  • Power
    10 W
  • Impedance
    50 Ω
  • Connector Type
    SMA-J(M)/SMA-K(F)

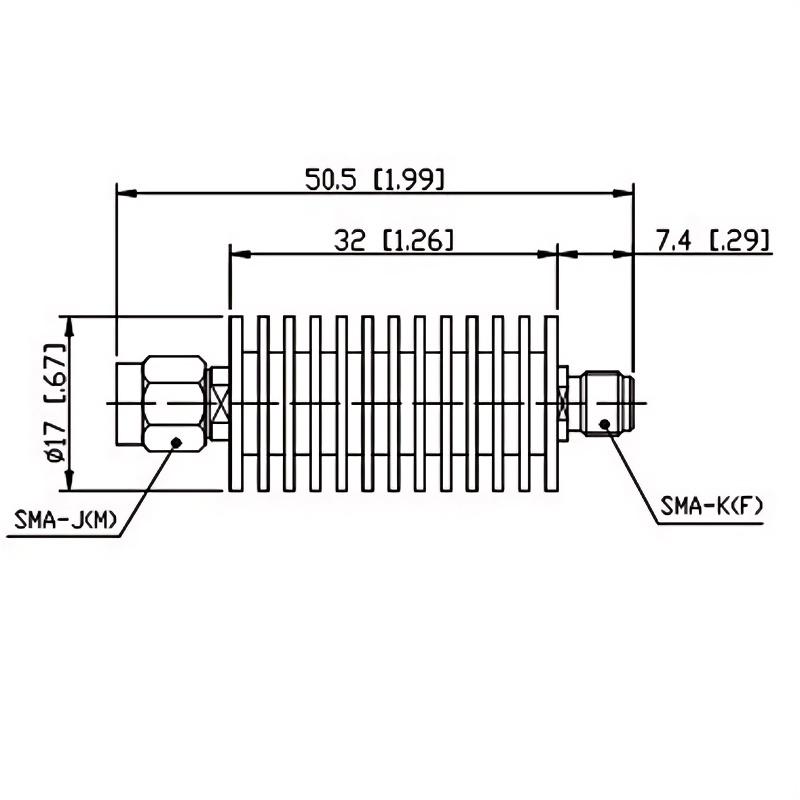

  • Size
    Φ17*50.5 mm
  • Weight
    10 g
  • Operating Temperature
    -55~+125 °C
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
