CPXX-F4312-0.555-6.0

by Low-PIM-Couplers-Combined-or-Open-Circuit

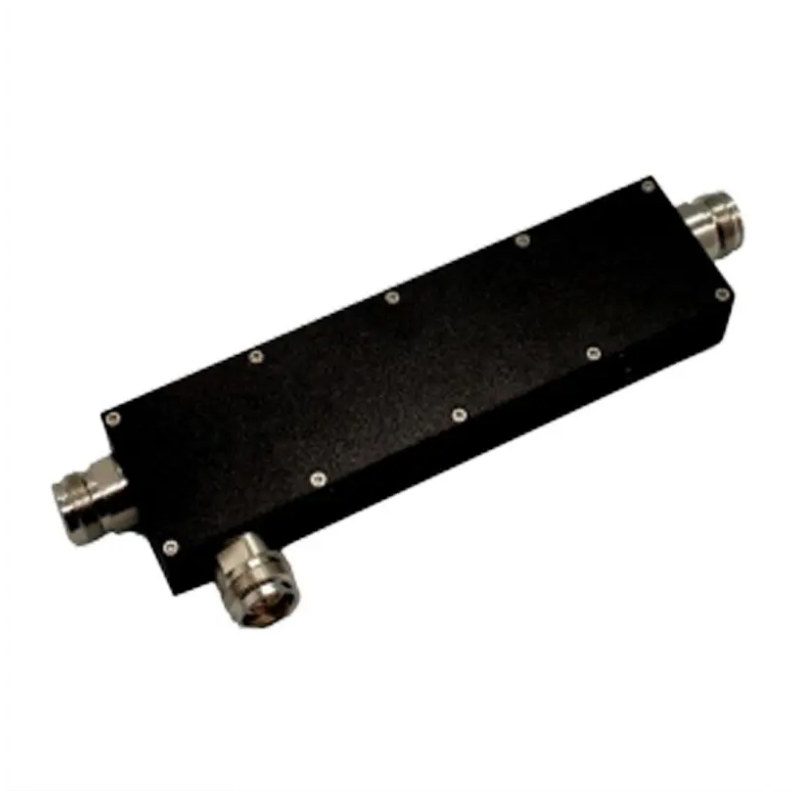

RFHB04G18GPI Image

RF Solution offer a wide selection of Low PIM Couplers Combined or Open Circuit for global customers. CPXX-F4312-0.555-6.0 is a Low PIM Couplers Combined or Open Circuit in Frequency Range of 0.555~6.0 GHz. It is made of high quality materials under a high standard, the Coupling Loss of this product is ±1.0dB, Insertion Loss Max is 2.3 dB and Isolation Min is 17 dB. The component has a good working performance and stability, it is ideal for handling a Rated Power of 300 W.

Product Specifications

Product Details

  • Part Number
    CPXX-F4312-0.555-6.0
  • Description
    0.555~6.0 GHz Low PIM Couplers Combined Or Open Circuit

General Parameters

  • Frequency Range
    0.555~6.0 GHz
  • Coupling Loss
    ±1.0dB
  • Insertion Loss Max
    2.3 dB
  • Isolation Min
    17 dB
  • Rated Power
    300 W
  • VSWR Max
    1.3
  • PIM Max
    -150/-155/-160 dBc, @2*43dBm
  • Impedance
    /
  • Connector Type
    N/F
  • Operating Temperature
    /
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
