UIYDI8080A

by Drop-in-Isolator

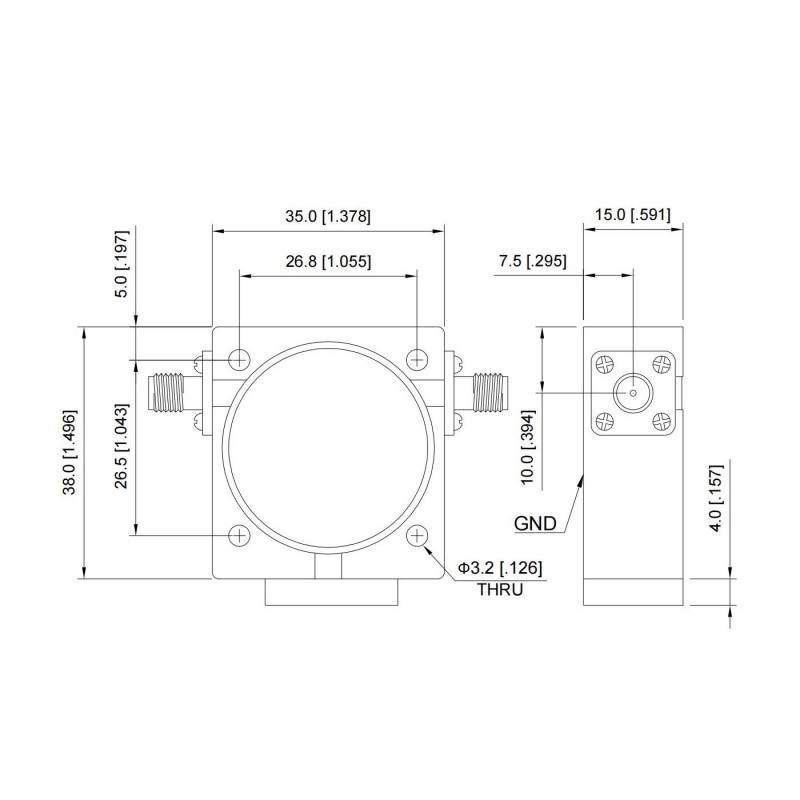

RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Isolator for global customers. UIYDI8080A is a Drop in Isolator in Frequency Range of 10~55 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 20%, Insertion Loss Max is 1.20~5.00 dB and Isolation Min is 11.0~20.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 50 W.

Product Specifications

Product Details

  • Part Number
    UIYDI8080A
  • Description
    10 to 55 MHz Drop in Isolator

General Parameters

  • Frequency Range
    10~55 MHz
  • Bandwidth Max
    20%
  • Insertion Loss Max
    1.20~5.00 dB
  • Isolation Min
    11.0~20.0 dB
  • Forward Power
    50 W
  • Reverse Power
    50 W
  • VSWR Max
    1.25~1.80
  • Impedance
    50 Ω
  • Connector Type
    TAB
  • Size
    80*80*28 mm
  • Weight
    /
  • Operating Temperature
    +10~+60 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Forward Power (W) Reverse Power (W) Connector Type Operating Temperature (℃) Choose
UIYDI8080A10T12 10-12 5.00 11.0 1.80 50 50 TAB +20~+60
UIYDI8080A12713T14407 12.713-14.407 5.00 11.0 1.80 50 50 TAB +20~+60
UIYDI8080A13T14 13-14 5.00 14.0 1.50 50 50 TAB +20~+60
UIYDI8080A18T20 18-20 5.00 15.0 1.45 50 50 TAB +20~+60
UIYDI8080A25T30 25-30 3.50 12.0 1.45 50 50 TAB +10~+60
UIYDI8080A26T28 26-28 3.00 15.0 1.45 50 50 TAB +10~+60
UIYDI8080A285T305 28.5-30.5 2.80 16.0 1.40 50 50 TAB +10~+60
UIYDI8080A30T32 30-32 1.80 16.0 1.40 50 50 TAB +10~+60
UIYDI8080A30T35 30-35 2.50 15.0 1.50 50 50 TAB +10~+60
UIYDI8080A35T45 35-45 3.00 16.0 1.40 50 50 TAB +10~+60
UIYDI8080A44T50 44-50 1.20/1.50 20.0/17.0 1.25/1.35 50 50 TAB +20~+60
