SMTG-D12.5

by Surface-Mount-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Surface Mount Isolator for global customers. SMTG-D12.5 is a Surface Mount Isolator in Frequency Range of 700~6000 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 15%, Insertion Loss Max is 0.30~0.60 dB and Isolation Min is 18.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 30 W.

Product Specifications

Product Details

  • Part Number
    SMTG-D12.5
  • Description
    700 to 6000 MHz Surface Mount Isolator

General Parameters

  • Frequency Range
    700~6000 MHz
  • Bandwidth Max
    15%
  • Insertion Loss Max
    0.30~0.60 dB
  • Isolation Min
    18.0~23.0 dB
  • Forward Power
    30 W
  • Reverse Power
    10 W
  • VSWR Max
    1.25~1.30
  • Impedance
    50 Ω
  • Connector Type
    SMT

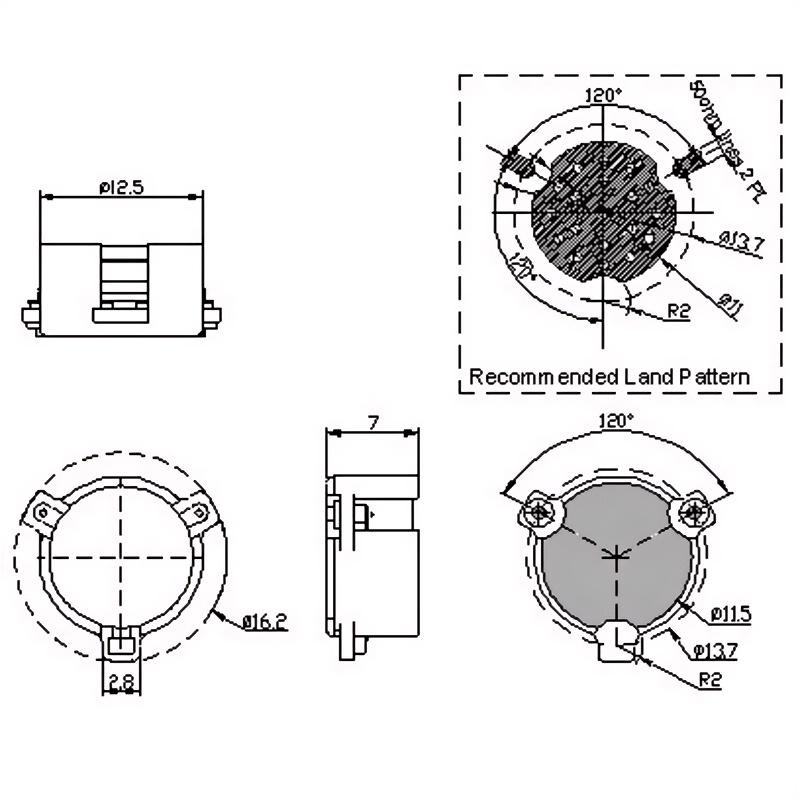

  • Size
    Φ12.5*7.0 mm
  • Weight
    5 g
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Forward Power (W) Reverse Power (W) Choose
SMTG-D12.5-X/790-810MHz 790-810 0.40 20.0 1.25 30 10
SMTG-D12.5-X/800-830MHz 800-830 0.40 20.0 1.25 30 10
SMTG-D12.5-X/900-930MHz 900-930 0.40 20.0 1.25 30 10
SMTG-D12.5-X/930-960MHz 930-960 0.30 20.0 1.25 30 10
SMTG-D12.5-X/1420-1450MHz 1420-1450 0.40 20.0 1.25 30 10
SMTG-D12.5-X/1710-1785MHz 1710-1785 0.40 20.0 1.25 30 10
SMTG-D12.5-X/1805-1880MHz 1805-1880 0.40 20.0 1.25 30 10
SMTG-D12.5-X/1930-1990MHz 1930-1990 0.30 23.0 1.20 30 10
SMTG-D12.5-X/2110-2170MHz 2110-2170 0.30 23.0 1.20 30 10
SMTG-D12.5-X/2400-2500MHz 2400-2500 0.30 21.0 1.20 30 10
SMTG-D12.5-X/2900-3300MHz 2900-3300 0.35 18.0 1.30 30 10
SMTG-D12.5-X/4400-5000MHz 4400-5000 0.60 18.0 1.30 30 10
SMTG-D12.5-X/5700-5900MHz 5700-5900 0.40 20.0 1.25 30 10
Request Quote
