MG0505-06

by Microstrip-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Microstrip Isolator for global customers. MG0505-06 is a Microstrip Isolator in Frequency Range of 28.5~30.0 GHz. It is made of high quality materials under a high standard, the Insertion Loss Max of this product is 0.60 dB, Isolation Min is 17.0 dB and VSWR Max is 1.35. The component has a good working performance and stability, it is ideal for handling a Forward Power of 1 W.

Product Specifications

Product Details

  • Part Number
    MG0505-06
  • Description
    28.5 to 30.0 GHz Microstrip Isolator

General Parameters

  • Frequency Range
    28.5~30.0 GHz
  • Insertion Loss Max
    0.60 dB
  • Isolation Min
    17.0 dB
  • VSWR Max
    1.35
  • Forward Power
    1 W
  • Reverse Power
    0.5 W
  • Impedance
    50 Ω
  • Connector Type
    Micro strip
  • Size

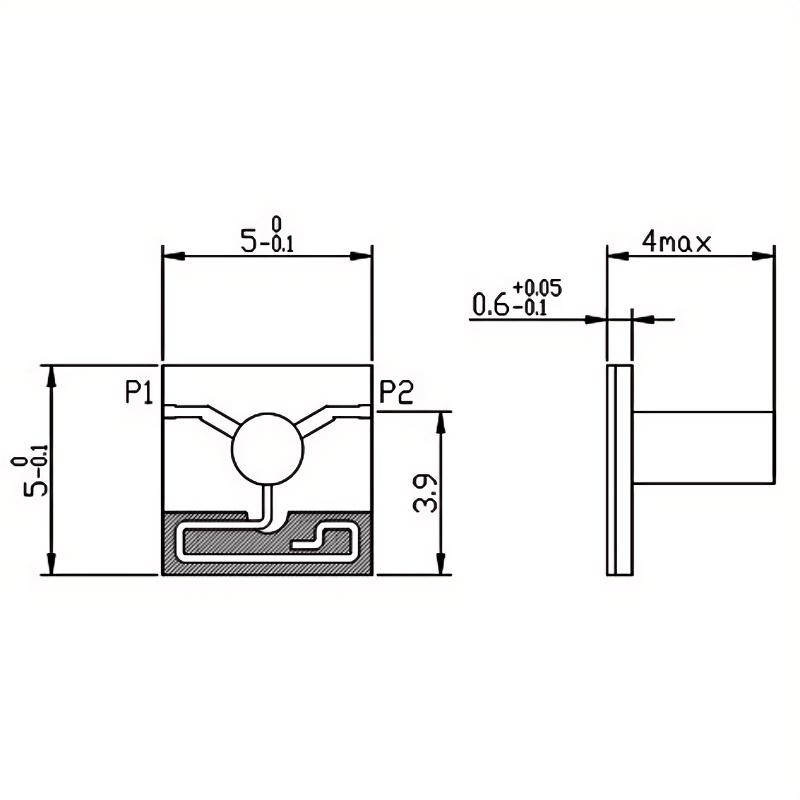

    5.0*5.0*4.0 mm
  • Weight
    /
  • Operating Temperature
    -55~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Forward Power (W) Reverse Power (W) Choose
MG0505-06-X/28.5-30.0GHz 28.5-30.0 0.60 17.0 1.35 1 0.5
