BG1348-WR90

by Waveguide-Isolator

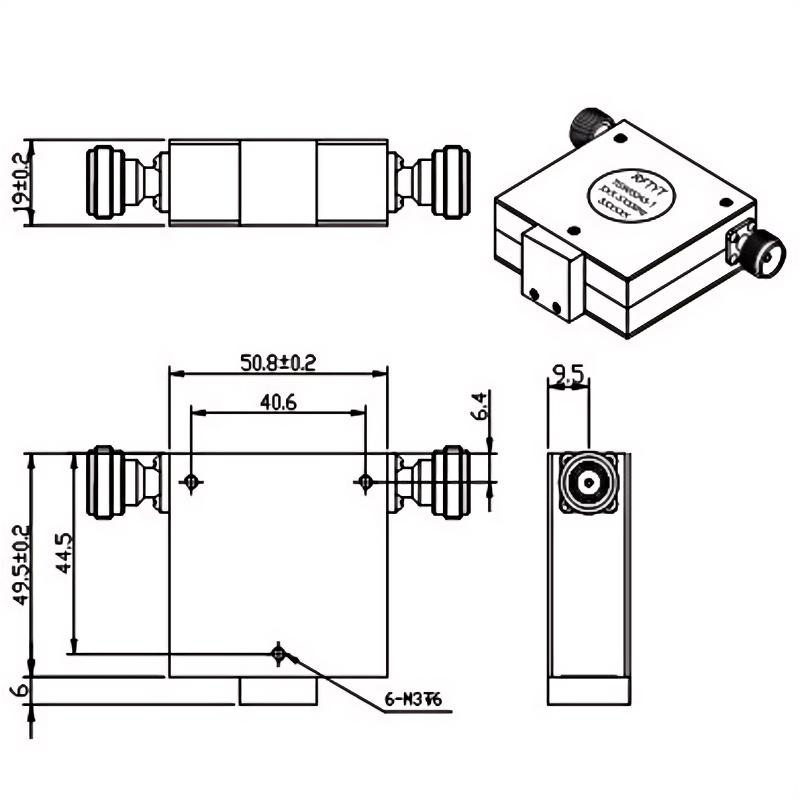

RFHB04G18GPI Image

RF Solution offer a wide selection of Waveguide Isolator for global customers. BG1348-WR90 is a Waveguide Isolator in Frequency Range of 8.0~12.4 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 200M/300M, Insertion Loss Max is 0.30~0.40 dB and Isolation Min is 23.0~25.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of /.

Product Specifications

Product Details

  • Part Number
    BG1348-WR90
  • Description
    8.0 to 12.4 GHz Waveguide Isolator

General Parameters

  • Frequency Range
    8.0~12.4 GHz
  • Bandwidth Max
    200M/300M
  • Insertion Loss Max
    0.30~0.40 dB
  • Isolation Min
    23.0~25.0 dB
  • Forward Power
    /
  • Reverse Power
    /
  • VSWR Max
    1.20~1.25
  • Impedance
    50 Ω
  • Connector Type
    WR90
  • Size
    48.5*12.7*42 mm
  • Weight
    /
  • Operating Temperature
    -40~+80 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (GHz) Bandwidth Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Choose
BG1348-WR90/8.0-12.4GHz 8.0-12.4 200M/300M 0.30/0.40 23.0/25.0 1.20/1.25
Request Quote
