BG1338-WR62

by Waveguide-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Waveguide Isolator for global customers. BG1338-WR62 is a Waveguide Isolator in Frequency Range of 12.0~18.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 300M/500M, Insertion Loss Max is 0.30~0.40 dB and Isolation Min is 20.0~25.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of /.

Product Specifications

Product Details

  • Part Number
    BG1338-WR62
  • Description
    12.0 to 18.0 GHz Waveguide Isolator

General Parameters

  • Frequency Range
    12.0~18.0 GHz
  • Bandwidth Max
    300M/500M
  • Insertion Loss Max
    0.30~0.40 dB
  • Isolation Min
    20.0~25.0 dB
  • Forward Power
    /
  • Reverse Power
    /
  • VSWR Max
    1.20
  • Impedance
    50 Ω
  • Connector Type
    WR62

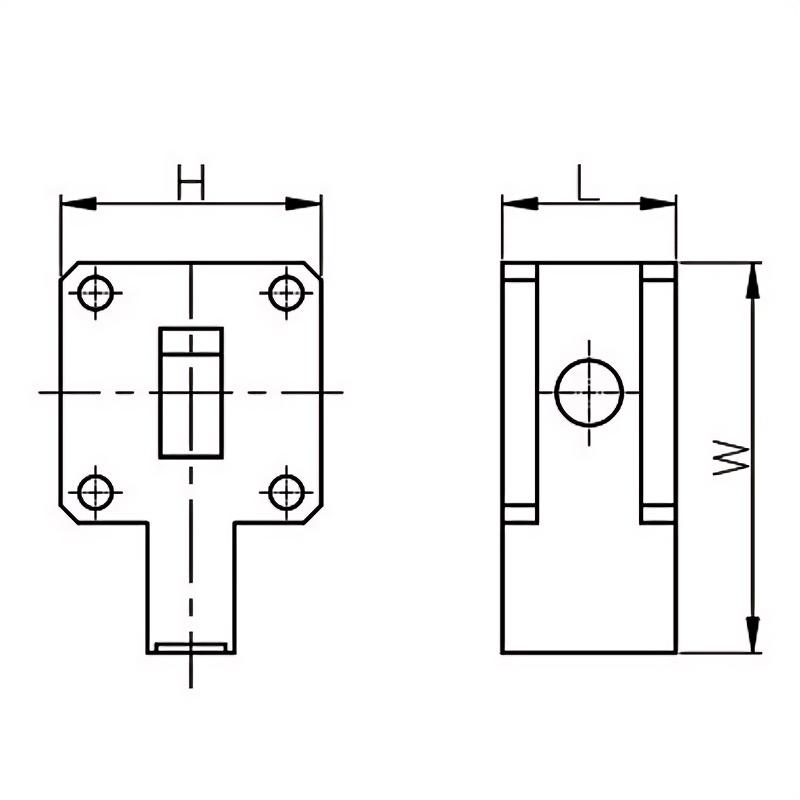

  • Size
    38.3*12.7*33.3 mm
  • Weight
    /
  • Operating Temperature
    -40~+80 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (GHz) Bandwidth Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Choose
BG1338-WR62/12.0-18.0GHz 12.0-18.0 300M/500M 0.30/0.40 20.0/23.0 1.20
