TH2025XS

by Coaxial-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Circulator for global customers. TH2025XS is a Coaxial Circulator in Frequency Range of 1700~5000 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 20%, Insertion Loss Max is 0.25~0.50 dB and Isolation Min is 18.0~25.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100 W.

Product Specifications

Product Details

  • Part Number
    TH2025XS
  • Description
    1700 to 5000 MHz Coaxial Circulator

General Parameters

  • Frequency Range
    1700~5000 MHz
  • Bandwidth Max
    20%
  • Insertion Loss Max
    0.25~0.50 dB
  • Isolation Min
    18.0~25.0 dB
  • Forward Power
    100 W
  • Power
    100 W
  • VSWR Max
    1.15~1.30
  • Impedance
    50 Ω
  • Connector Type
    SMA-K

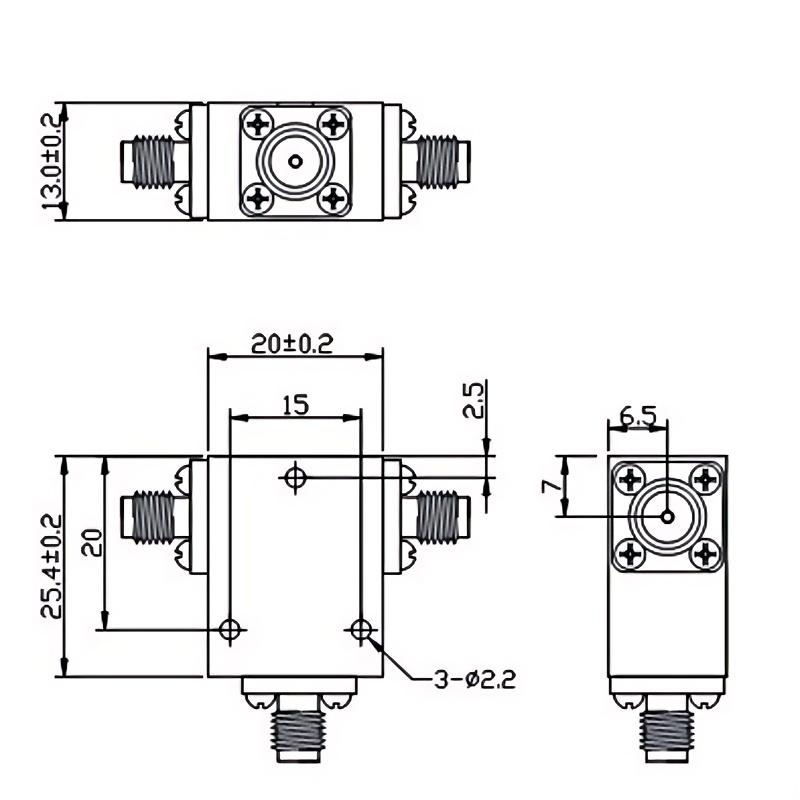

  • Size
    20.0*25.4*13.0 mm
  • Weight
    47 g
  • Operating Temperature
    -30~+70 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Power （W） Choose
TH2025XS-X/1700-1900MHz 1700-1900 0.40 20.0 1.25 100
TH2025XS-X/1710-1880MHz 1710-1880 0.40 20.0 1.25 100
TH2025XS-X/1800-1900MHz 1800-1900 0.30 23.0 1.20 100
TH2025XS-X/1805-1880MHz 1805-1880 0.30 23.0 1.20 100
TH2025XS-X/1880-1900MHz 1880-1900 0.25 25.0 1.15 100
TH2025XS-X/1900-2000MHz 1900-2000 0.30 23.0 1.20 100
TH2025XS-X/1900-2200MHz 1900-2200 0.40 20.0 1.25 100
TH2025XS-X/2000-2400MHz 2000-2400 0.50 18.0 1.30 100
TH2025XS-X/2010-2100MHz 2010-2100 0.30 23.0 1.20 100
TH2025XS-X/2010-2300MHz 2010-2300 0.45 20.0 1.25 100
TH2025XS-X/2090-2310MHz 2090-2310 0.40 20.0 1.25 100
TH2025XS-X/2100-2170MHz 2100-2170 0.30 23.0 1.20 100
TH2025XS-X/2200-2300MHz 2200-2300 0.30 23.0 1.20 100
TH2025XS-X/2260-2293MHz 2260-2293 0.25 25.0 1.15 100
TH2025XS-X/2300-2500MHz 2300-2500 0.35 20.0 1.20 100
TH2025XS-X/2400-2500MHz 2400-2500 0.25 23.0 1.15 100
TH2025XS-X/2500-2700MHz 2500-2700 0.30 20.0 1.20 100
TH2025XS-X/2620-2690MHz 2620-2690 0.30 23.0 1.15 100
TH2025XS-X/2700-3100MHz 2700-3100 0.4 20.0 1.25 100
TH2025XS-X/2900-3100MHz 2900-3100 0.30 23.0 1.20 100
TH2025XS-X/3100-3400MHz 3100-3400 0.35 20.0 1.20 100
TH2025XS-X/3400-3600MHz 3400-3600 0.30 20.0 1.20 100
TH2025XS-X/3400-3700MHz 3400-3700 0.35 20.0 1.25 100
TH2025XS-X/3600-4000MHz 3600-4000 0.40 20.0 1.25 100
TH2025XS-X/3650-3750MHz 3650-3750 0.30 23.0 1.20 100
TH2025XS-X/3700-3800MHz 3700-3800 0.30 23.0 1.20 100
TH2025XS-X/3700-4200MHz 3700-4200 0.45 19.0 1.25 100
TH2025XS-X/3750-4250MHz 3750-4250 0.45 19.0 1.25 100
TH2025XS-X/3900-4200MHz 3900-4200 0.40 20.0 1.25 100
TH2025XS-X/4000-4500MHz 4000-4500 0.40 20.0 1.25 100
TH2025XS-X/4280-4320MHz 4280-4320 0.30 23.0 1.20 100
TH2025XS-X/4400-5000MHz 4400-5000 0.50 20.0 1.25 100
TH2025XS-X/4500-5000MHz 4500-5000 0.45 20.0 1.25 100
TH2025XS-X/4800-4900MHz 4800-4900 0.30 23.0 1.20 100
TH2025XS-X/4900-5000MHz 4900-5000 0.30 23.0 1.20 100
TH2025XS-X/5700-5900MHz 5700-5900 0.40 20.0 1.25 100
