WH4040A

by Drop-in-Circulator

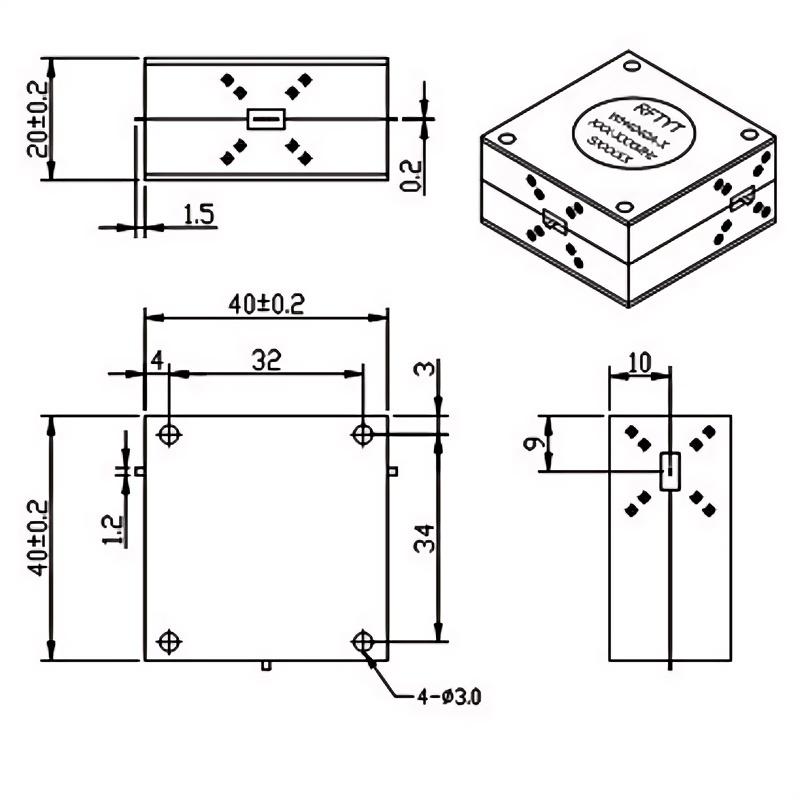

RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Circulator for global customers. WH4040A is a Drop in Circulator in Frequency Range of 1.50~3.5 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.60~0.70 dB and Isolation Min is 17.0~18.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 100 W.

Product Specifications

Product Details

  • Part Number
    WH4040A
  • Description
    1.50 to 3.5 GHz Drop in Circulator

General Parameters

  • Frequency Range
    1.50~3.5 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.60~0.70 dB
  • Isolation Min
    17.0~18.0 dB
  • Power
    100 W
  • VSWR Max
    1.30~1.35
  • Impedance
    50 Ω
  • Connector Type
    /
  • Size
    40.0*40.0*20.0 mm
  • Weight
    190 g
  • Operating Temperature
    -10~+60 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Power （W） Choose
WH4040A-X/1.5-3.0GHz 1.5-3.0 0.70 17.0 1.35 100
WH4040A-X/1.7-2.7GHz 1.7-2.7 0.60 18.0 1.30 100
WH4040A-X/1.8-2.7GHz 1.8-2.7 0.60 18.0 1.30 100
WH4040A-X/1.8-3.6GHz 1.8-3.6 0.70 17.0 1.35 100
