WH2123B

by Drop-in-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Circulator for global customers. WH2123B is a Drop in Circulator in Frequency Range of 4.0~8.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.40~0.60 dB and Isolation Min is 18.0~19.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 100 W.

Product Specifications

Product Details

  • Part Number
    WH2123B
  • Description
    4.0 to 8.0 GHz Drop in Circulator

General Parameters

  • Frequency Range
    4.0~8.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.40~0.60 dB
  • Isolation Min
    18.0~19.0 dB
  • Power
    100 W
  • VSWR Max
    1.25~1.30
  • Impedance
    50 Ω
  • Connector Type
    /

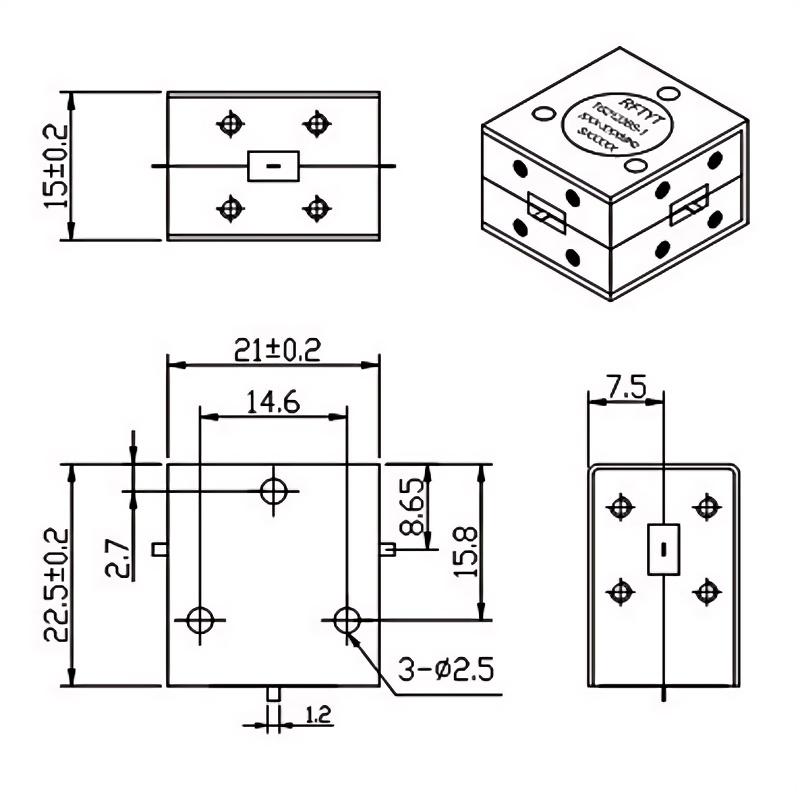

  • Size
    21.0*22.5*15.0 mm
  • Weight
    55 g
  • Operating Temperature
    -10~+60 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (GHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR （Max） Power （W） Choose
WH2123B-X/4.0-7.0GHz 4.0-7.0 0.50 18.0 1.30 100
WH2123B-X/4.0-7.2GHz 4.0-7.2 0.50 18.0 1.30 100
WH2123B-X/4.0-8.0GHz 4.0-8.0 0.60 18.0 1.30 100
WH2123B-X/5.0-7.0GHz 5.0-7.0 0.50 19.0 1.25 100
WH2123B-X/5.6-7.0GHz 5.6-7.0 0.50 19.0 1.25 100
WH2123B-X/5.8-6.7GHz 5.8-6.7 0.50 19.0 1.25 100
WH2123B-X/6.0-8.0GHz 6.0-8.0 0.40 19.0 1.25 100
