UIYBCI6060C

by Broadband-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Broadband Isolator for global customers. UIYBCI6060C is a Broadband Isolator in Frequency Range of 130~180 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.80 dB and Isolation Min is 18.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100 W.

Product Specifications

Product Details

  • Part Number
    UIYBCI6060C
  • Description
    130 to 180 MHz Broadband Isolator

General Parameters

  • Frequency Range
    130~180 MHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.80 dB
  • Isolation Min
    18.0 dB
  • Forward Power
    100 W
  • Reverse Power
    30 W
  • VSWR Max
    1.30
  • Impedance
    50 Ω
  • Connector Type
    N-F/N-M

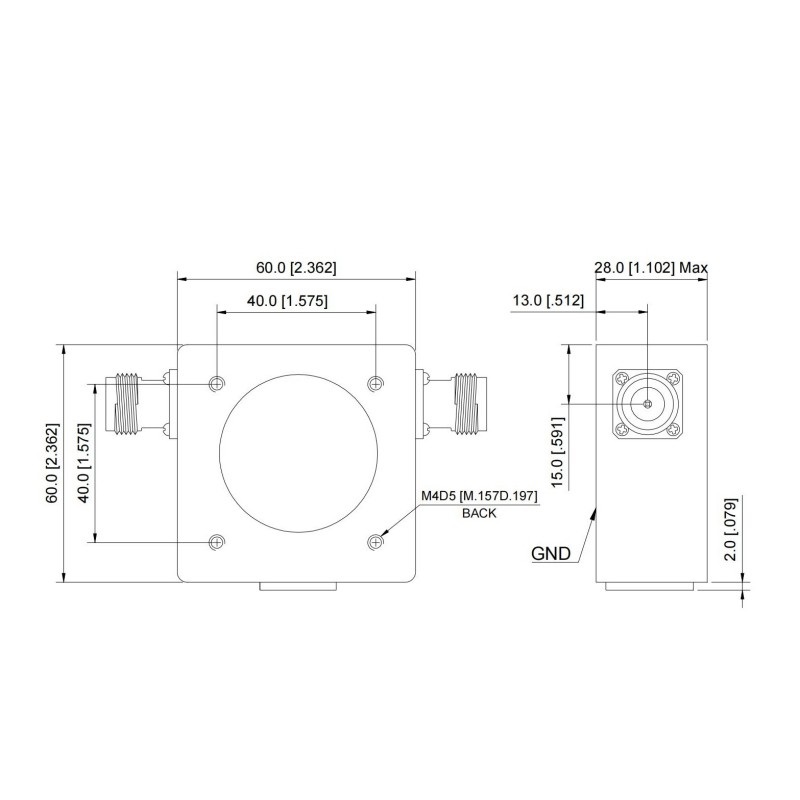

  • Size
    60×60×28 mm
  • Weight
    /
  • Operating Temperature
    -20~+70 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
