SMTH-D18

by Surface-Mount-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Surface Mount Circulator for global customers. SMTH-D18 is a Surface Mount Circulator in Frequency Range of 800~3800 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 20%, Insertion Loss Max is 0.25~0.60 dB and Isolation Min is 17.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Power of 100/500 W.

Product Specifications

Product Details

  • Part Number
    SMTH-D18
  • Description
    1400 to 3800 MHz Surface Mount Circulator

General Parameters

  • Frequency Range
    800~3800 MHz
  • Bandwidth Max
    20%
  • Insertion Loss Max
    0.25~0.60 dB
  • Isolation Min
    17.0~23.0 dB
  • Power
    100/500 W
  • VSWR Max
    1.20~1.30
  • Impedance
    50 Ω
  • Connector Type
    SMT

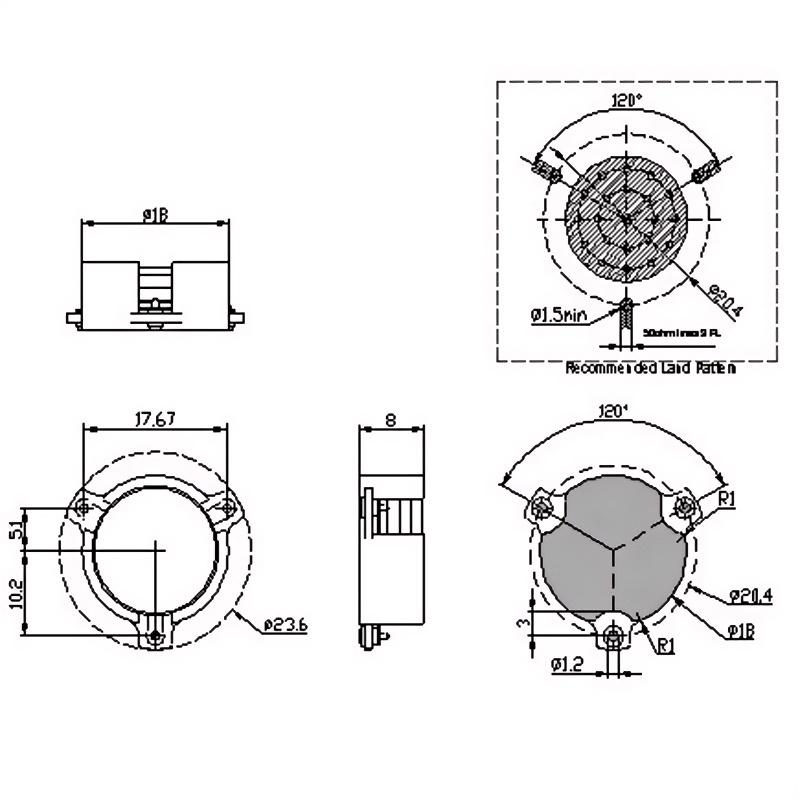

  • Size
    Φ18.0*8.0 mm
  • Weight
    15 g
  • Operating Temperature
    -40~+80 ℃
  • Storage Temperature
    -50~+90 ℃
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Power （CW） Choose
SMTH-D18-X/1400-1500MHz 1400-1500 0.35 23.0 1.20 100
SMTH-D18-X/1400-1530MHz 1400-1530 0.35 20.0 1.25 100
SMTH-D18-X/2100-2200MHz 2100-2200 0.25 23.0 1.20 100
SMTH-D18-X/2110-2170MHz 2110-2170 0.30 23.0 1.20 100
SMTH-D18-X/2555-2655MHz 2555-2655 0.25 23.0 1.20 100
SMTH-D18-X/2570-2620MHz 2570-2620 0.50 18.0 1.30 100
SMTH-D18-X/2900-3300MHz 2900-3300 0.35 18.0 1.30 500
SMTH-D18-X/3300-3800MHz 3300-3800 0.60 17.0 1.35 100
