BH3848-WR51

by Waveguide-Circulator
RFHB04G18GPI Image

RF Solution offer a wide selection of Waveguide Circulator for global customers. BH3848-WR51 is a Waveguide Circulator in Frequency Range of 14.5~22.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 5/10%, Insertion Loss Max is 0.30 dB and Isolation Min is 23.0~25.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of /.

Product Specifications

Product Details

  • Part Number
    BH3848-WR51
  • Description
    14.5 to 22.0 GHz Waveguide Circulator

General Parameters

  • Frequency Range
    14.5~22.0 GHz
  • Bandwidth Max
    5/10%
  • Insertion Loss Max
    0.30 dB
  • Isolation Min
    23.0~25.0 dB
  • Forward Power
    /
  • VSWR Max
    1.12~1.15
  • Impedance
    50 Ω
  • Connector Type
    WR51

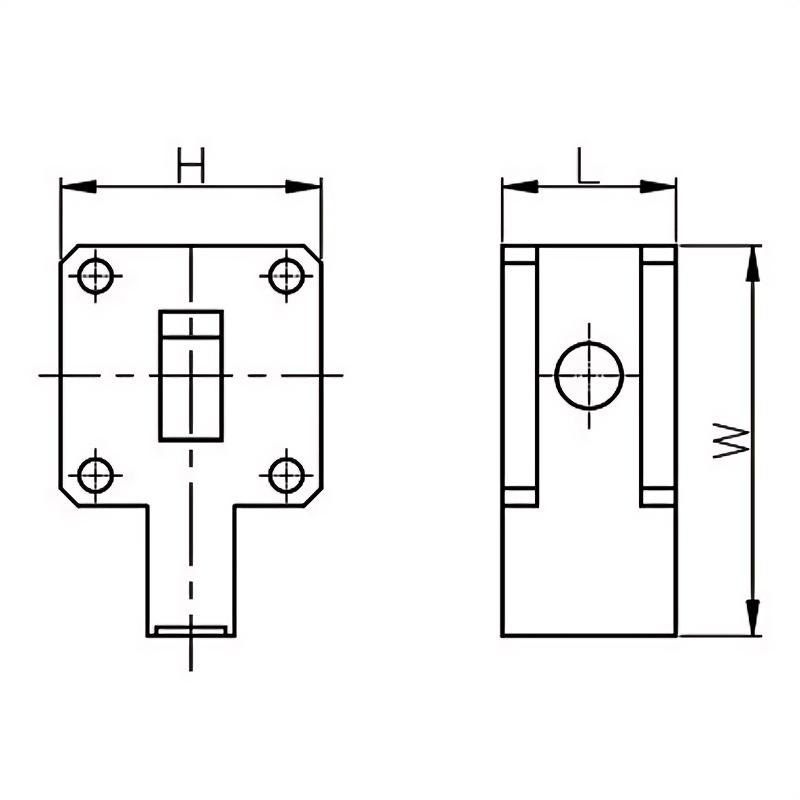

  • Size
    48*38*33.3 mm
  • Weight
    /
  • Operating Temperature
    -40~+80 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes


Technical Documents

Specifications

Part Number Frequency Range (GHz) Bandwidth Insertion Loss Max (dB) Isolation Min (dB) VSWR (Max) Choose
BH3848-WR51/14.5-22.0GHz 14.5-22.0 5% 0.30 25.0 1.12
BH3848-WR51/14.5-22.0GHz 14.5-22.0 10% 0.30 23.0 1.15
Request Quote
