RFT50-300TM3213B

by Flanged-Termination
RFHB04G18GPI Image

RF Solution offer a wide selection of Flanged Termination for global customers. RFT50-300TM3213B is a Flanged Termination in Frequency Range of DC~3.0 GHz. It is made of high quality materials under a high standard, the Resistance Range of this product is 50 Ω, Resistance Tolerance is ±5% and VSWR Max is 1.20~1.30. The component has a good working performance and stability, it is ideal for handling a Power of 300 W.

Product Specifications

Product Details

  • Part Number
    RFT50-300TM3213B
  • Description
    DC~3.0 GHz Flanged Termination

General Parameters

  • Frequency Range
    DC~3.0 GHz
  • Resistance Range
    50 Ω
  • Resistance Tolerance
    ±5%
  • VSWR Max
    1.20~1.30
  • Power
    300 W
  • Size

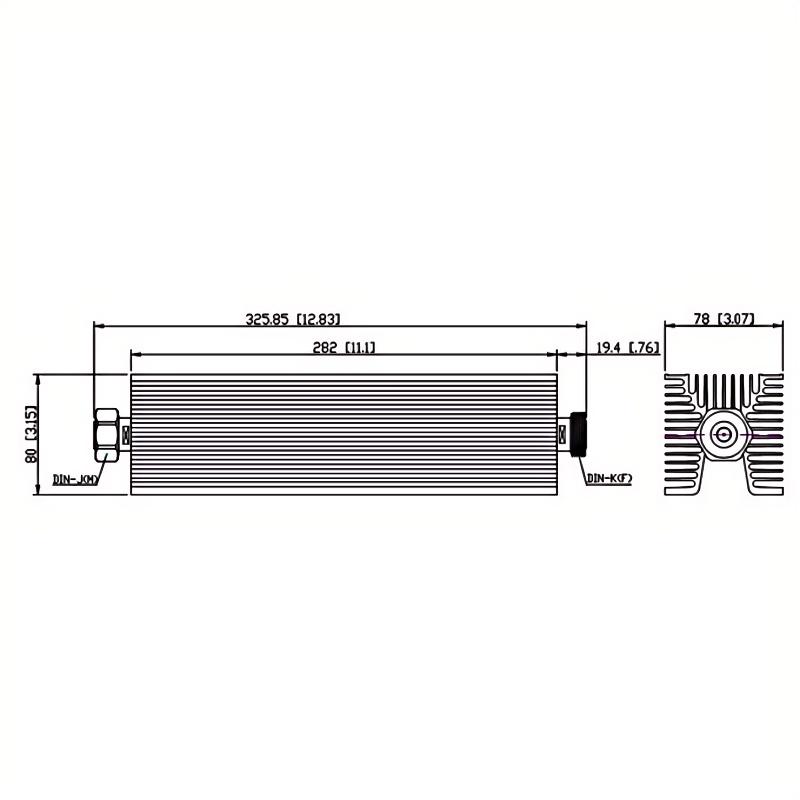

    Refer to the design drawing
  • Temperature Coefficient Max
    150 ppm/℃
  • Substrate Material
    BeO
  • Cap Material
    Al2O3
  • Flange
    Nickel-plated copper
  • Lead
    99.99% Sterling silver
  • Resistance Technology
    Thick Film
  • Operating Temperature
    -55~+150 °C
  • ROHS Compliant
    Yes
