PD06-F8888-S-1-4GHz

by 6-Ways-Power-Divider
RFHB04G18GPI Image

RF Solution offer a wide selection of 6 Ways Power Divider for global customers. PD06-F8888-S-1-4GHz is a 6 Ways Power Divider in Frequency Range of 1.0~4.0 GHz. It is made of high quality materials under a high standard, the Insertion Loss Max of this product is 1.5 dB, Isolation Min is 20 dB and Amplitude Unbalance is ±0.4 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 20 W.

Product Specifications

Product Details

  • Part Number
    PD06-F8888-S-1-4GHz
  • Description
    1.0~4.0 GHz 6 Ways Power Divider

General Parameters

  • Frequency Range
    1.0~4.0 GHz
  • Insertion Loss Max
    1.5 dB
  • Isolation Min
    20 dB
  • Amplitude Unbalance
    ±0.4 dB
  • Forward Power
    20 W
  • Reverse Power
    1 W
  • VSWR Input Max
    1.40
  • VSWR Output Max
    1.30
  • Phase Unbalance
    ±5°
  • Impedance
    50 Ω
  • Connector Type
    SMA-F

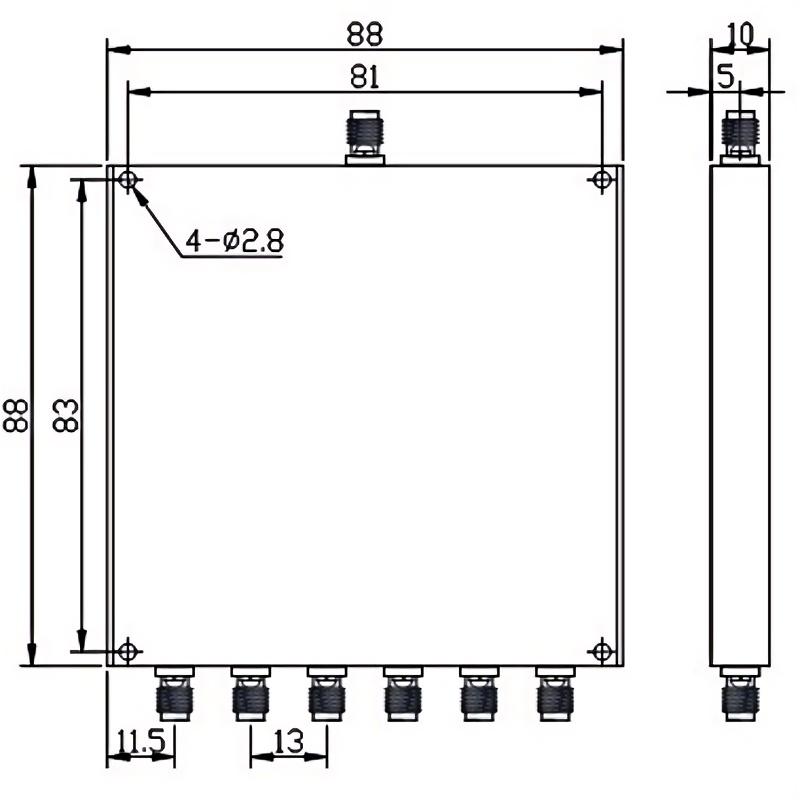

  • Size
    88*88*10 mm
  • Weight
    /
  • Surface Finishing
    Grey Painting
  • Operating Temperature
    -45~+85 °C
  • ROHS Compliant
    Yes
