PD12-F1692-S-2-8GHz

by 12-Ways-Power-Divider
RFHB04G18GPI Image

RF Solution offer a wide selection of 12 Ways Power Divider for global customers. PD12-F1692-S-2-8GHz is a 12 Ways Power Divider in Frequency Range of 2.0~8.0 GHz. It is made of high quality materials under a high standard, the Insertion Loss Max of this product is 2.0 dB, Isolation Min is 18 dB and Amplitude Unbalance is ±0.8 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 20 W.

Product Specifications

Product Details

  • Part Number
    PD12-F1692-S-2-8GHz
  • Description
    2.0~8.0 GHz 12 Ways Power Divider

General Parameters

  • Frequency Range
    2.0~8.0 GHz
  • Insertion Loss Max
    2.0 dB
  • Isolation Min
    18 dB
  • Amplitude Unbalance
    ±0.8 dB
  • Forward Power
    20 W
  • Reverse Power
    1 W
  • VSWR Input Max
    1.70
  • VSWR Output Max
    1.40
  • Phase Unbalance
    ±8°
  • Impedance
    50 Ω
  • Connector Type
    SMA-F

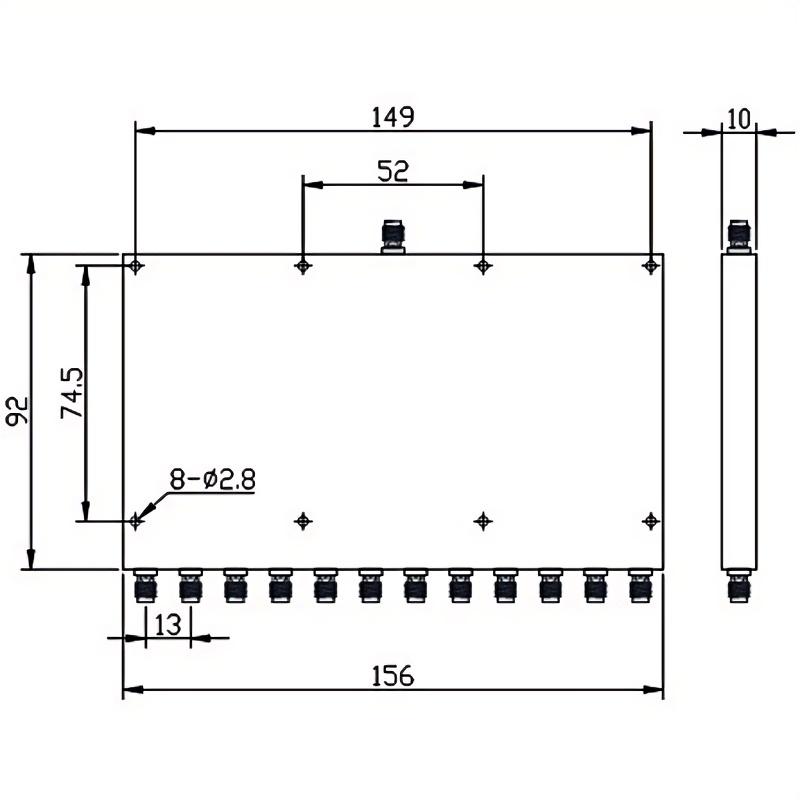

  • Size
    156*92*10 mm
  • Weight
    /
  • Surface Finishing
    Grey Painting
  • Operating Temperature
    -45~+85 °C
  • ROHS Compliant
    Yes
