LPF-DCM1400A-S

by Low-Pass-Filter
RFHB04G18GPI Image

RF Solution offer a wide selection of Low Pass Filter for global customers. LPF-DCM1400A-S is a Low Pass Filter in Frequency Range of DC~1400 MHz. It is made of high quality materials under a high standard, the Insertion Loss Max of this product is 2.0 dB, Rejection Min is 40dB@1484-11000MHz and VSWR Max is 2.00. The component has a good working performance and stability, it is ideal for handling a Rated Power of 20 W.

Product Specifications

Product Details

  • Part Number
    LPF-DCM1400A-S
  • Description
    DC~1400 MHz Low Pass Filter

General Parameters

  • Frequency Range
    DC~1400 MHz
  • Insertion Loss Max
    2.0 dB
  • Rejection Min
    40dB@1484-11000MHz
  • VSWR Max
    2.00
  • Rated Power
    20 W
  • Impedance
    50 Ω
  • Connector Type
    SMA-F(K)

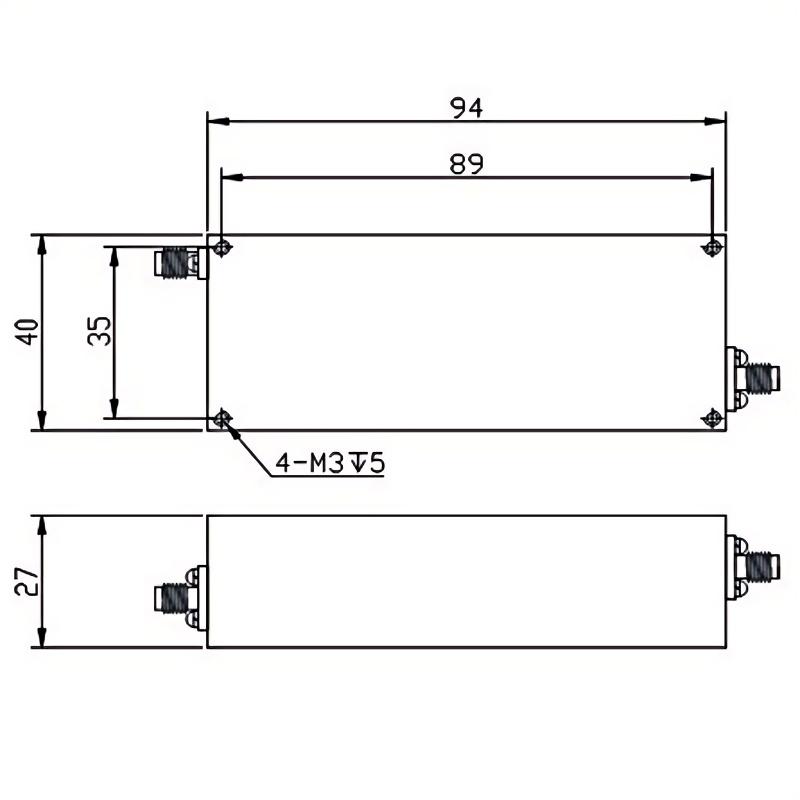

  • Size
    94*40*27 mm
  • Weight
    /
  • Surface Finishing
    Black Painting
  • Operating Temperature
    Ordinary Temperature
  • Storage Temperature
    -55~+85 °C
  • ROHS Compliant
    Yes
