BSF-6425M6525A-S

by Band-Stop-Filter
RFHB04G18GPI Image

RF Solution offer a wide selection of Band Stop Filter for global customers. BSF-6425M6525A-S is a Band Stop Filter in Rejection Band of 6425~6525 MHz. It is made of high quality materials under a high standard, the Pass Band of this product is DC~6375MHz / 6575~18000MHz, Insertion Loss Max is 3.0 dB and Rejection Min is 40 dB. The component has a good working performance and stability, it is ideal for handling a Rated Power of 10 W.

Product Specifications

Product Details

  • Part Number
    BSF-6425M6525A-S
  • Description
    6425~6525 MHz Band Stop Filter

General Parameters

  • Rejection Band
    6425~6525 MHz
  • Pass Band
    DC~6375MHz / 6575~18000MHz
  • Insertion Loss Max
    3.0 dB
  • Rejection Min
    40 dB
  • Rated Power
    10 W
  • VSWR Max
    2.00
  • Impedance
    50 Ω
  • Connector Type
    SMA-F

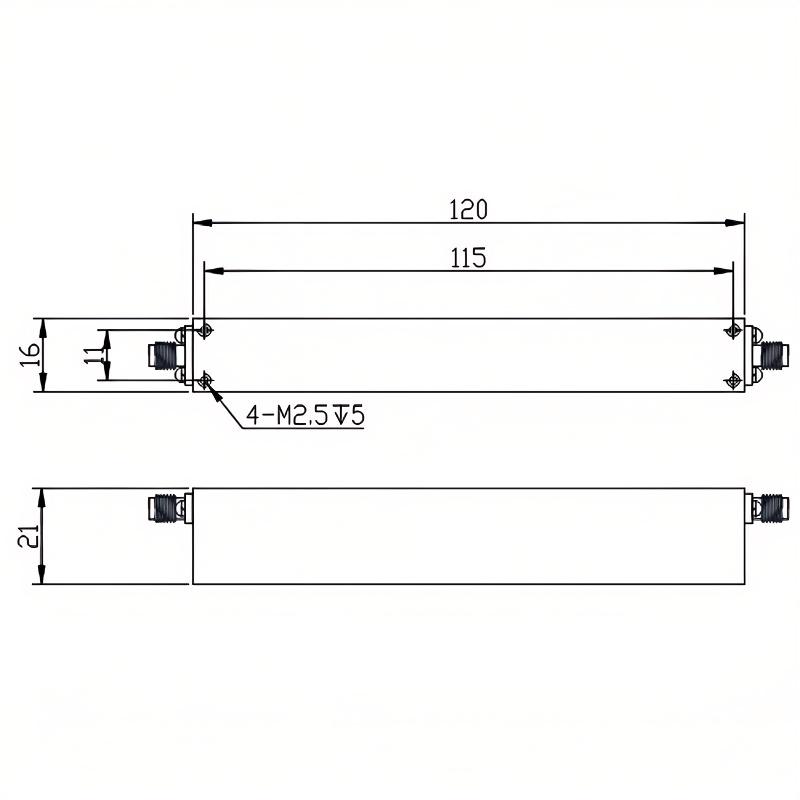

  • Size
    120*21*16 mm
  • Surface Finishing
    Black Painting
  • Operating Temperature
    Ordinary temperature
  • Storage Temperature
    -55~+85 °C
  • ROHS Compliant
    Yes
