BSF-26.5G29.5A-S

by Band-Stop-Filter
RFHB04G18GPI Image

RF Solution offer a wide selection of Band Stop Filter for global customers. BSF-26.5G29.5A-S is a Band Stop Filter in Rejection Band of 26.5~29.5 GHz. It is made of high quality materials under a high standard, the Pass Band of this product is DC~25GHz / 31~50GHz, Insertion Loss Max is 3.0 dB and Rejection Min is 60 dB. The component has a good working performance and stability, it is ideal for handling a Rated Power of 1 W.

Product Specifications

Product Details

  • Part Number
    BSF-26.5G29.5A-S
  • Description
    26.5~29.5 GHz Band Stop Filter

General Parameters

  • Rejection Band
    26.5~29.5 GHz
  • Pass Band
    DC~25GHz / 31~50GHz
  • Insertion Loss Max
    3.0 dB
  • Rejection Min
    60 dB
  • Rated Power
    1 W
  • VSWR Max
    2.00
  • Impedance
    50 Ω
  • Connector Type
    SMA-F

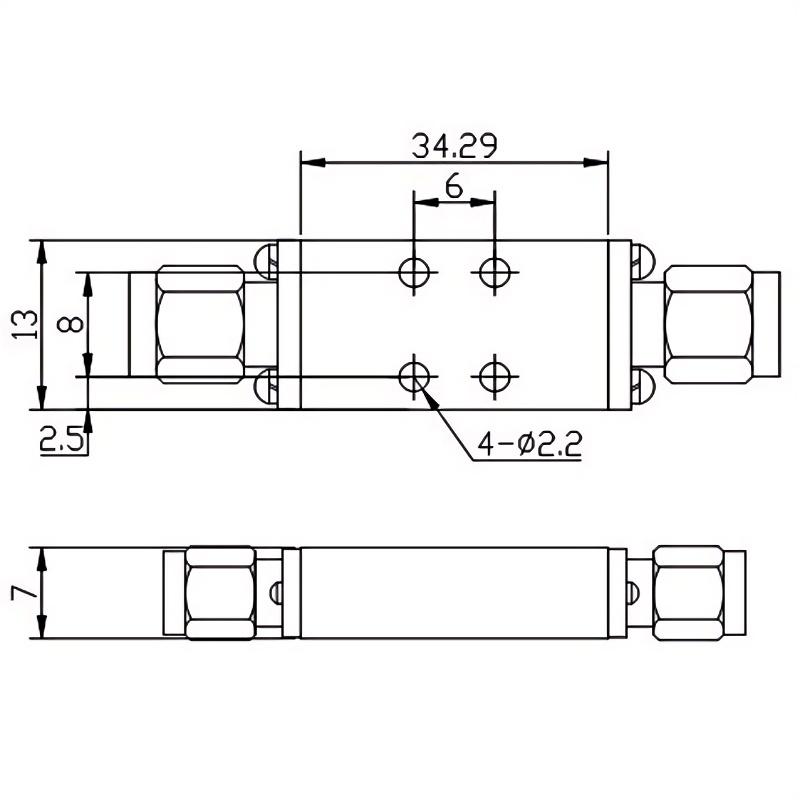

  • Size
    35*17*10 mm
  • Surface Finishing
    Black Painting
  • Operating Temperature
    Ordinary temperature
  • Storage Temperature
    -55~+85 °C
  • ROHS Compliant
    Yes
