RFTXX-30MA1132-18

by Microstrip-Attenuator
RFHB04G18GPI Image

RF Solution offer a wide selection of Microstrip Attenuator for global customers. RFTXX-30MA1132-18 is a Microstrip Attenuator in Frequency Range of DC~18.0 GHz. It is made of high quality materials under a high standard, the Attenuation Value of this product is ①1-10 dB ②11-20 dB ③21-30 dB, Attenuation Tolerance is ①±0.5 dB ②±0.6 dB ③± 1.0 dB and VSWR Max is 1.25 type 1.3. The component has a good working performance and stability, it is ideal for handling a Rated Power of 30 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-30MA1132-18
  • Description
    DC~18.0 GHz Microstrip Attenuator

General Parameters

  • Frequency Range
    DC~18.0 GHz
  • Attenuation Value
    ①1-10 dB ②11-20 dB ③21-30 dB
  • Attenuation Tolerance
    ①±0.5 dB ②±0.6 dB ③± 1.0 dB
  • VSWR Max
    1.25 type 1.3
  • Rated Power
    30 W
  • Impedance
    50 Ω

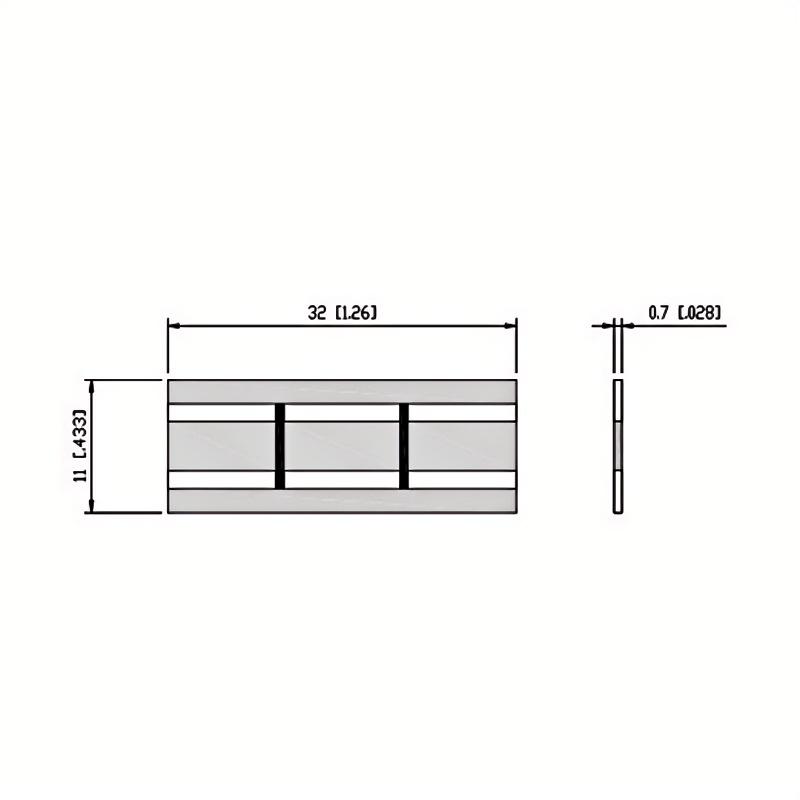

  • Size
    32.0*11.0*0.7 mm
  • Temperature Coefficient Max
    150 ppm/℃
  • Substrate Material
    BeO
  • Resistance Process
    Thick Film
  • Operating Temperature
    -55~+150 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
