RFTXX-300FA8028-N-4

by Coaxial-Fixed-Attenuator
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Fixed Attenuator for global customers. RFTXX-300FA8028-N-4 is a Coaxial Fixed Attenuator in Frequency Range of DC~6.0 GHz. It is made of high quality materials under a high standard, the VSWR Max of this product is 1.25, Attenuation Value is ①10 dB ②11-20 dB ③30, 40dB ④50, 60 dB and Attenuation Tolerance is ①±1.0 dB ②±1.2 dB ③±1.2 dB ④±1.5 dB. The component has a good working performance and stability, it is ideal for handling a Power of 300 W.

Product Specifications

Product Details

  • Part Number
    RFTXX-300FA8028-N-4
  • Description
    DC~6.0 GHz Coaxial Fixed Attenuator

General Parameters

  • Frequency Range
    DC~6.0 GHz
  • VSWR Max
    1.25
  • Attenuation Value
    ①10 dB ②11-20 dB ③30, 40dB ④50, 60 dB
  • Attenuation Tolerance
    ①±1.0 dB ②±1.2 dB ③±1.2 dB ④±1.5 dB
  • Power
    300 W
  • Impedance
    50 Ω
  • Connector Type
    N-J(M)/N-K(F)

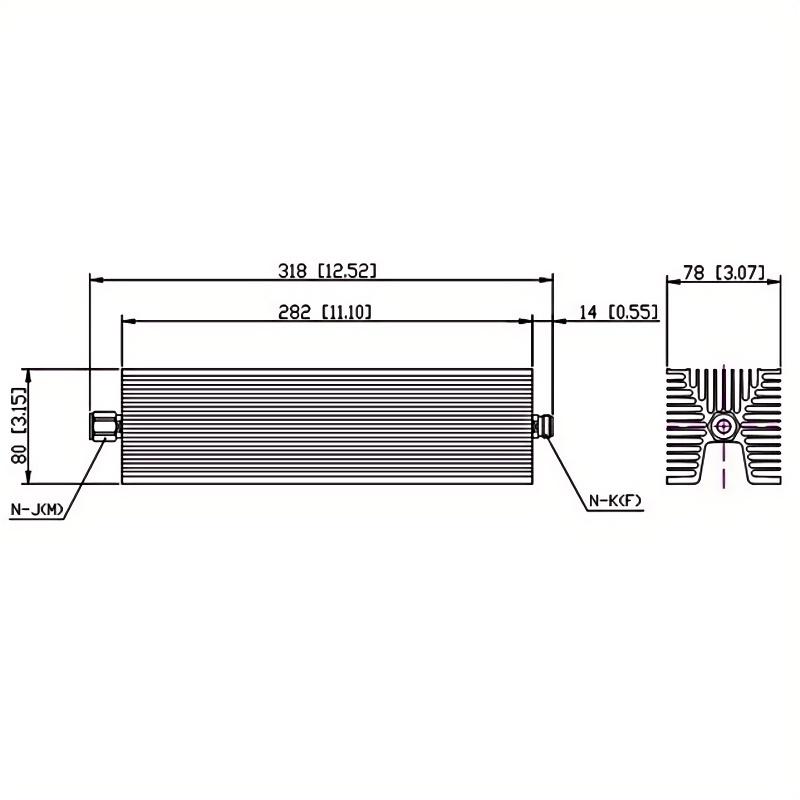

  • Size
    78×80x318 mm
  • Weight
    2100 g
  • Operating Temperature
    -55~+125 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
