UIYCI3434A

by Coaxial-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Isolator for global customers. UIYCI3434A is a Coaxial Isolator in Frequency Range of 700~2000 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 40%, Insertion Loss Max is 0.25~0.6 dB and Isolation Min is 16.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100/200 W.

Product Specifications

Product Details

  • Part Number
    UIYCI3434A
  • Description
    700 to 2000 MHz Coaxial Isolator

General Parameters

  • Frequency Range
    700~2000 MHz
  • Bandwidth Max
    40%
  • Insertion Loss Max
    0.25~0.6 dB
  • Isolation Min
    16.0~23.0 dB
  • Forward Power
    100/200 W
  • Reverse Power
    30 W
  • VSWR Max
    1.25~1.40
  • Impedance
    50 Ω
  • Connector Type
    N-F/SMA-F

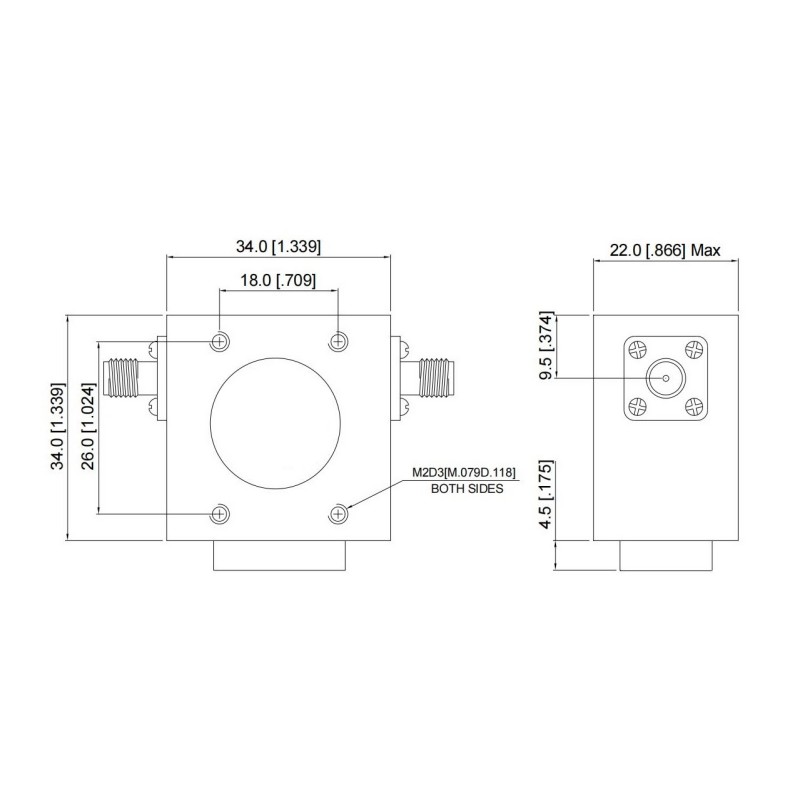

  • Size
    34*34*22 mm
  • Weight
    /
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Forward Power (W) Reverse Power (W) Choose
UIYCI3434A700T900SF 700-900 0.40 20.0 1.25 100 30
UIYCI3434A800T1000NF 800-1000 0.30 22.0 1.20 100 30
UIYCI3434A850T1150SMTSF 850-1150 0.60 18.0 1.30 100 30
UIYCI3434A860T960SF 860-960 0.25 23.0 1.20 100 30
UIYCI3434A900T1200SF 900-1200 0.50 20.0 1.25 100 30
UIYCI3434A900T1300SF 900-1300 0.60 18.0 1.30 100 30
UIYCI3434A950T1415SF 950-1415 0.60 18.0 1.40 100 30
UIYCI3434A950T1450SF 950-1450 0.60 16.0 1.40 100 30
UIYCI3434A960T1215NF 960-1215 0.30 20.0 1.25 200 30
UIYCI3434A960T1260SF 960-1260 0.30 18.0 1.30 100 30
UIYCI3434A1000T1500SF 1000-1500 0.60 16.0 1.40 100 30
UIYCI3434A1225T1875SF 1225-1875 0.60 16.0 1.40 100 30
UIYCI3434A1290T1710SF 1290-1710 0.50 20.0 1.25 120 30
UIYCI3434A1300T1740SF 1300-1740 0.50 20.0 1.25 100 30
UIYCI3434A1300T1800SF 1300-1800 0.50 18.0 1.30 100 30
UIYCI3434A1350T1850SF 1350-1850 0.50 18.0 1.30 100 30
