UIYCI3232A

by Coaxial-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Coaxial Isolator for global customers. UIYCI3232A is a Coaxial Isolator in Frequency Range of 700~2500 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 35%, Insertion Loss Max is 0.30~0.50 dB and Isolation Min is 18.0~23.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100/200 W.

Product Specifications

Product Details

  • Part Number
    UIYCI3232A
  • Description
    700 to 2500 MHz Coaxial Isolator

General Parameters

  • Frequency Range
    700~2500 MHz
  • Bandwidth Max
    35%
  • Insertion Loss Max
    0.30~0.50 dB
  • Isolation Min
    18.0~23.0 dB
  • Forward Power
    100/200 W
  • Reverse Power
    30 W
  • VSWR Max
    1.20~1.30
  • Impedance
    50 Ω
  • Connector Type
    N-F/SMA-F

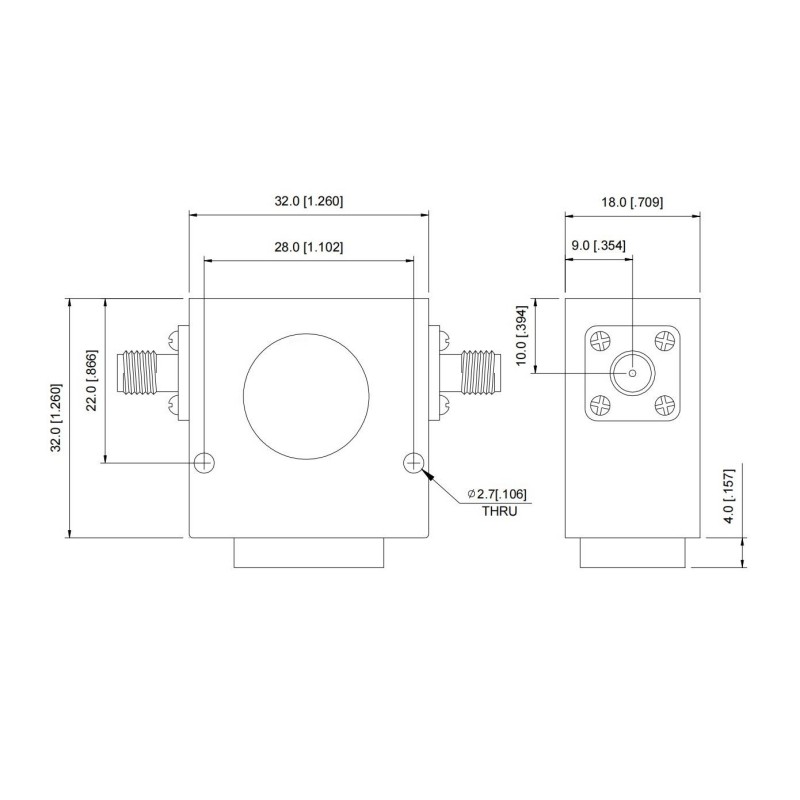

  • Size
    32*32*18 mm
  • Weight
    /
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes

Technical Documents

Specifications

Part Number Frequency Range (MHz) Insertion Loss Max (dB) Isolation Min (dB) VSWR Max Forward Power (W) Reverse Power (W) Choose
UIYCI3232A800T900NF 800-900 0.30 23.0 1.20 200 30
UIYCI3232A860T960NF 860-960 0.30 23.0 1.20 200 30
UIYCI3232A960T1215NF 960-1215 0.40 20.0 1.25 200 30
UIYCI3232A1450T1700SF 1450-1700 0.40 20.0 1.25 100 30
UIYCI3232A1500T2000SF 1500-2000 0.50 18.0 1.30 100 30
UIYCI3232A1600T2000NF 1600-2000 0.40 20.0 1.25 200 30
UIYCI3232A1700T2200SF 1700-2200 0.40 21.0 1.25 100 30
UIYCI3232A1700T2400SF 1700-2400 0.60 18.0 1.30 100 30
UIYCI3232A1800T2400SF 1800-2400 0.50 18.0 1.30 100 30
UIYCI3232A2000T2500SF 2000-2500 0.40 20.0 1.25 100 30
Request Quote
