UIYDI2027A

by Drop-in-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Drop in Isolator for global customers. UIYDI2027A is a Drop in Isolator in Frequency Range of 400~3000 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 30%, Insertion Loss Max is 0.25~0.70 dB and Isolation Min is 16.0~25.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100 W.

Product Specifications

Product Details

  • Part Number
    UIYDI2027A
  • Description
    400 to 3000 MHz Drop in Isolator

General Parameters

  • Frequency Range
    400~3000 MHz
  • Bandwidth Max
    30%
  • Insertion Loss Max
    0.25~0.70 dB
  • Isolation Min
    16.0~25.0 dB
  • Forward Power
    100 W
  • Reverse Power
    100 W
  • VSWR Max
    1.15~1.40
  • Impedance
    50 Ω
  • Connector Type
    TAB

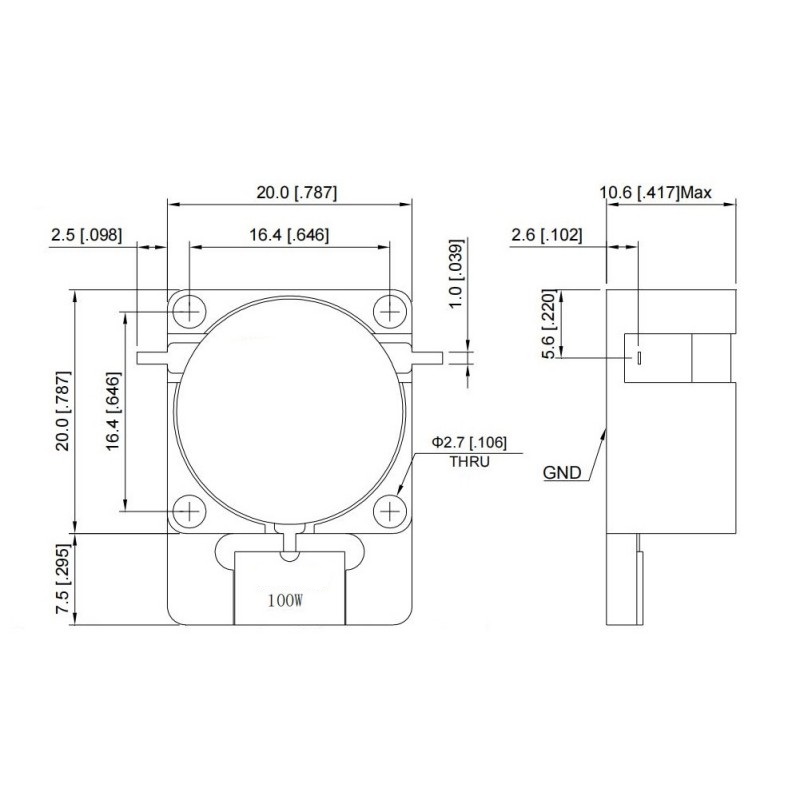

  • Size
    20×27×10.6 mm
  • Weight
    /
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
